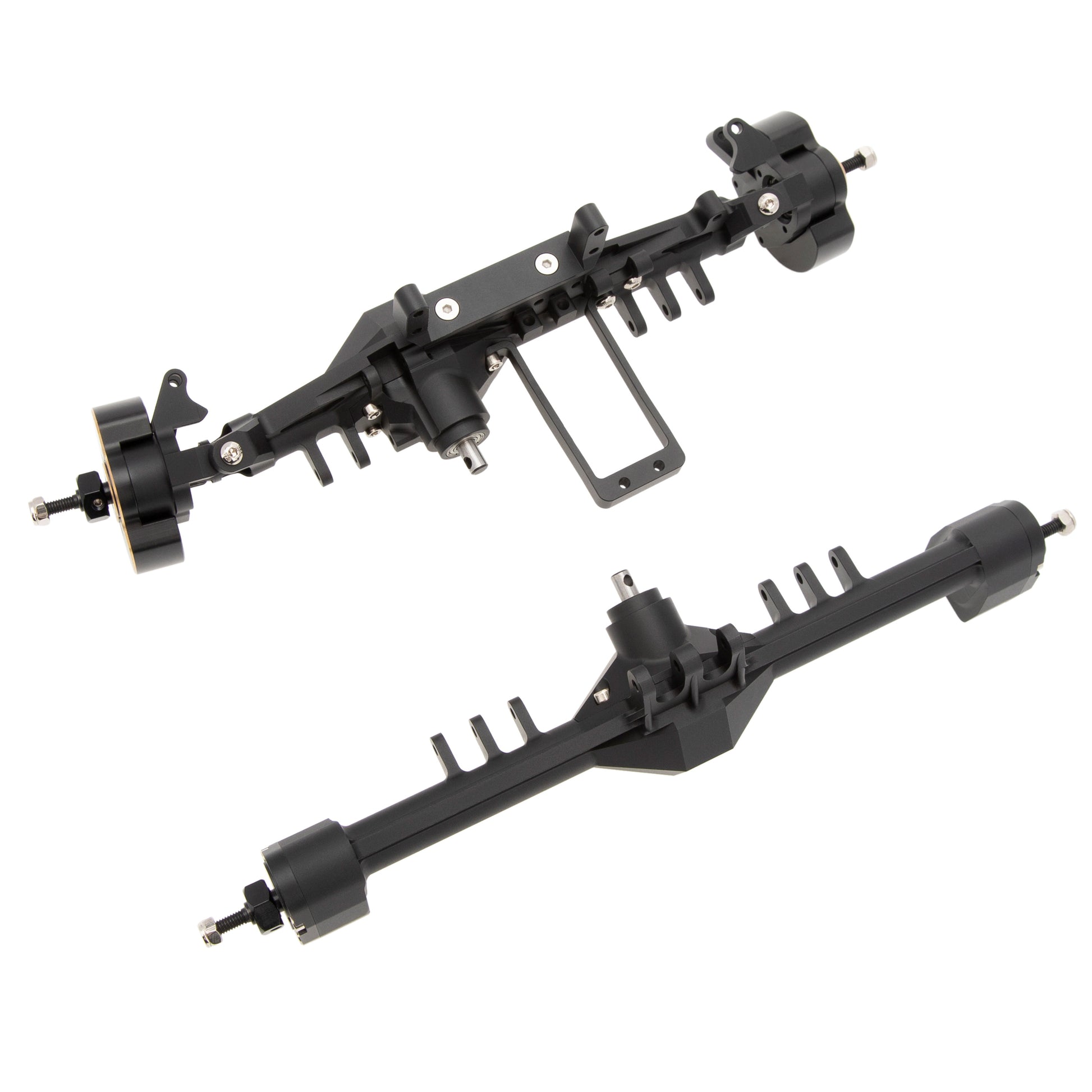

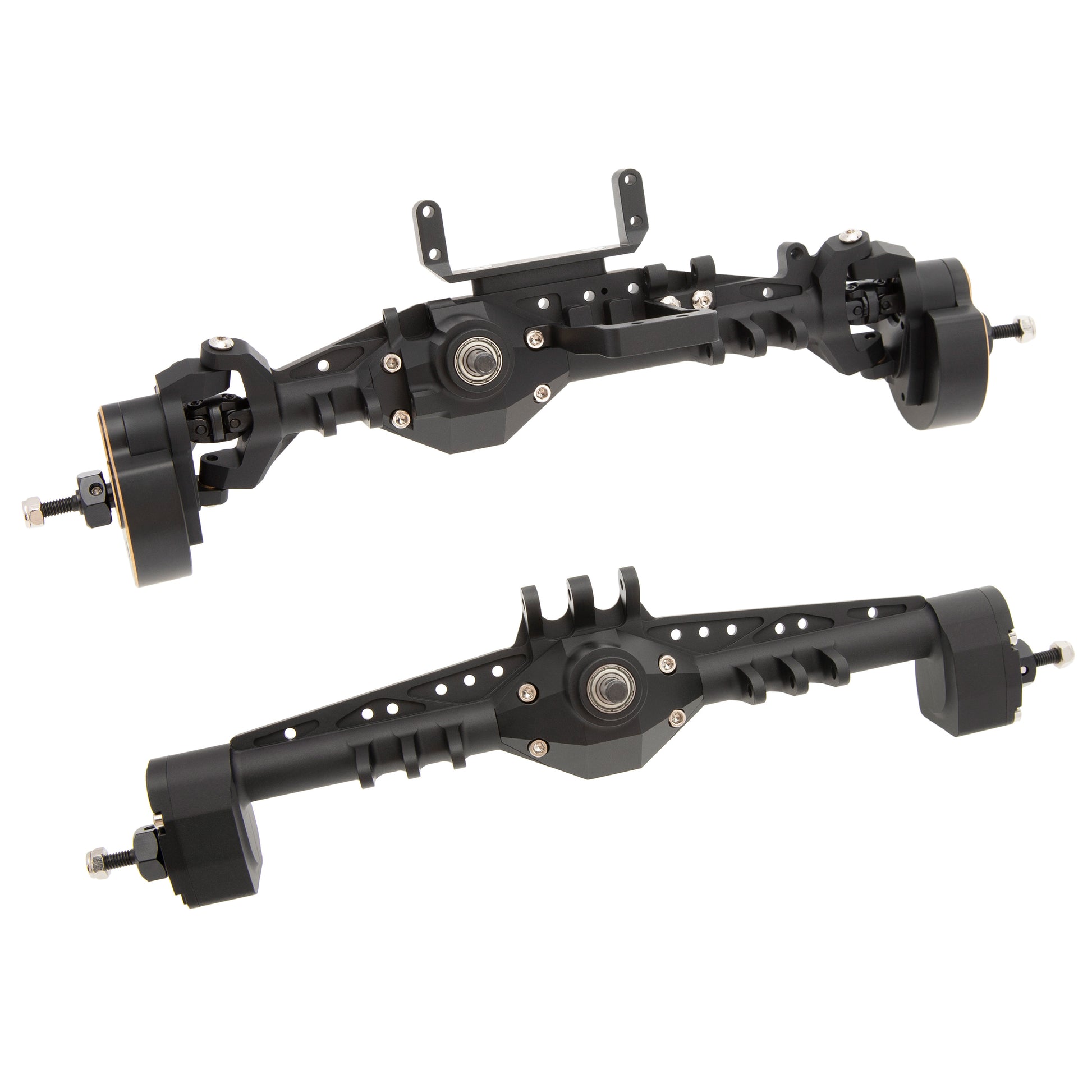

Black 1/10 Axial Capra 1.9 UTB front rear axles
Black 1/10 Axial Capra 1.9 UTB front rear axles

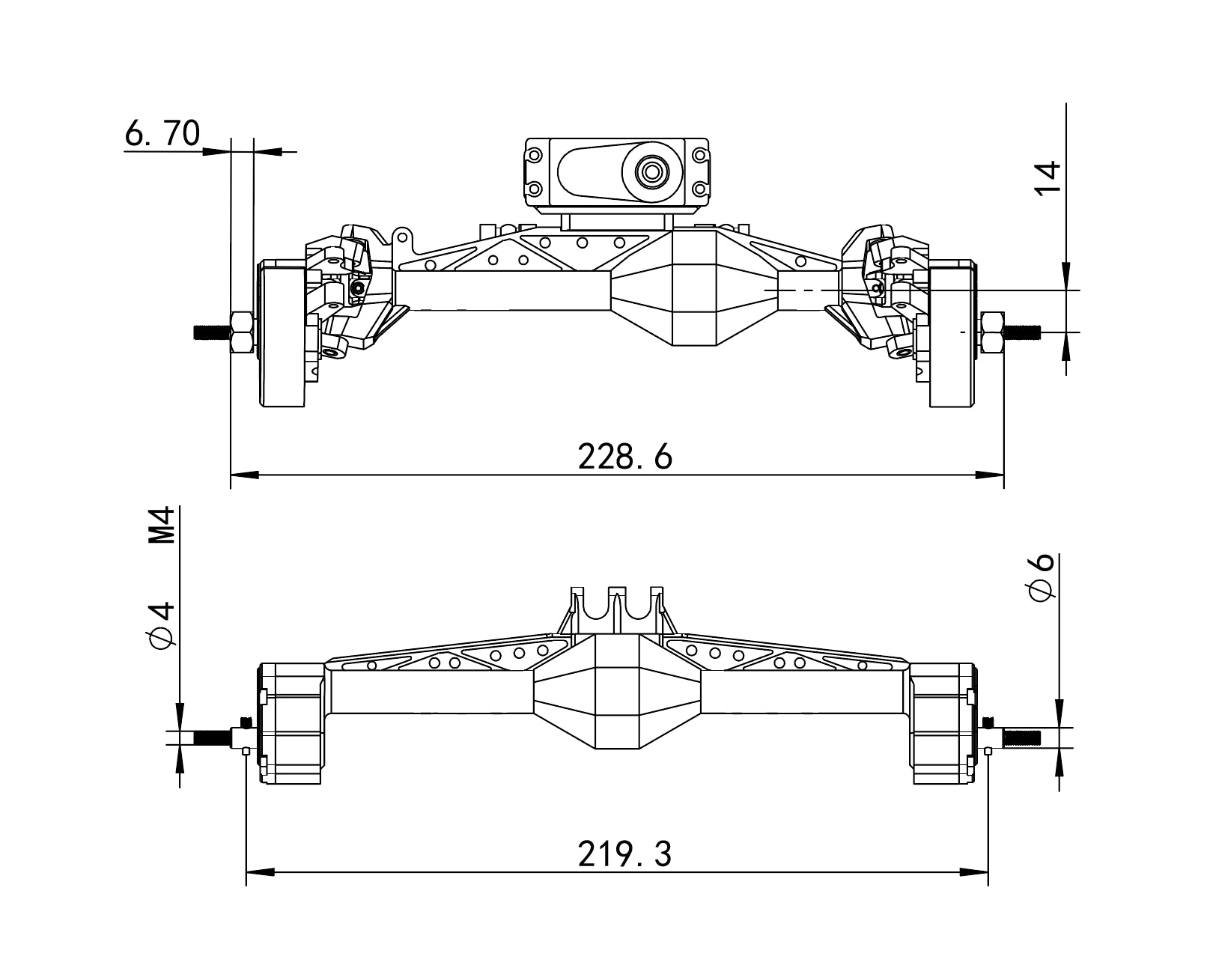

Black UTB 1.9 Capra front rear axles size
1/10 Axial Capra 1.9 UTB front rear axles size
Servo Installation
Black 1/10 Axial Capra 1.9 UTB front rear axles
Black 1/10 Axial Capra 1.9 UTB front rear axles steering knuckle

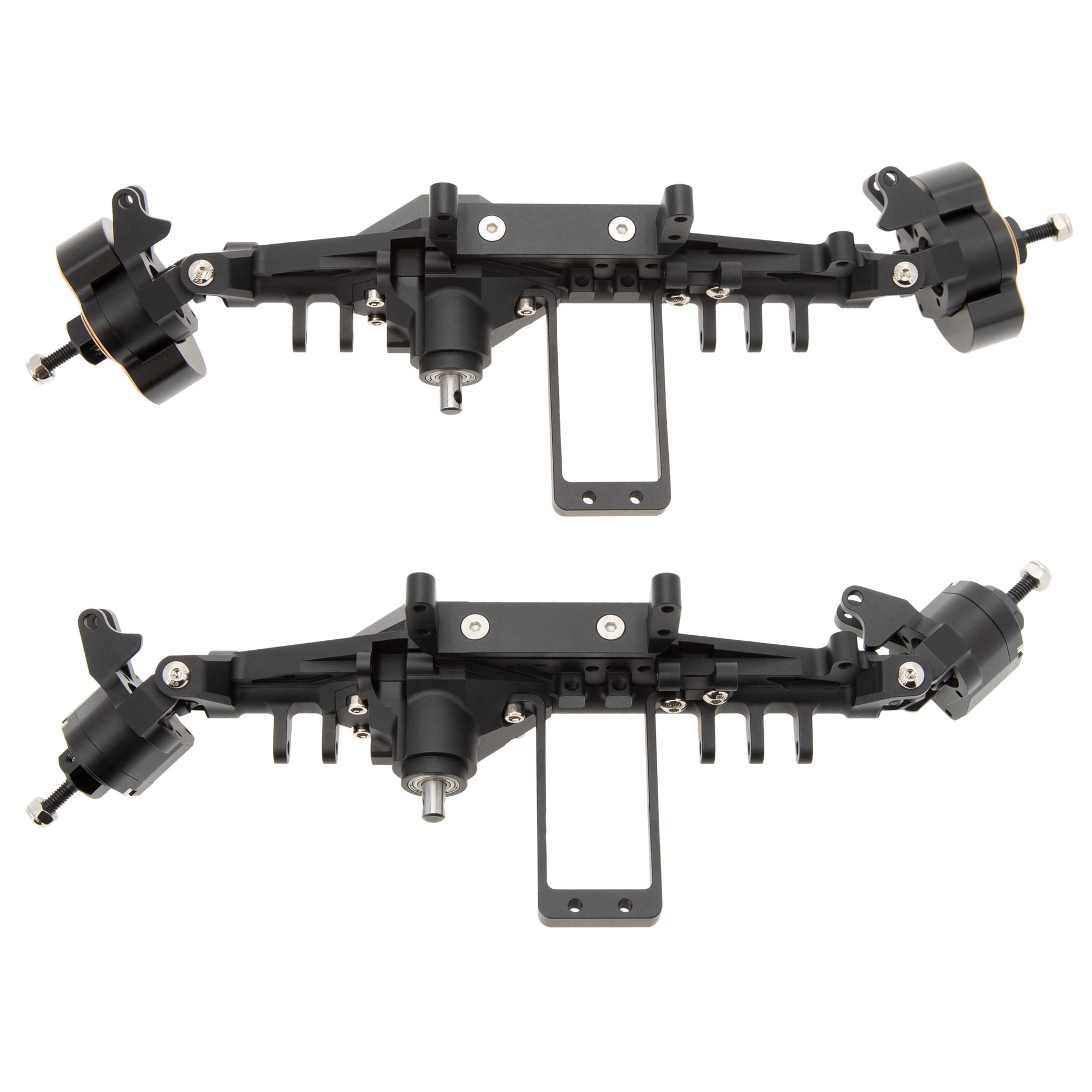

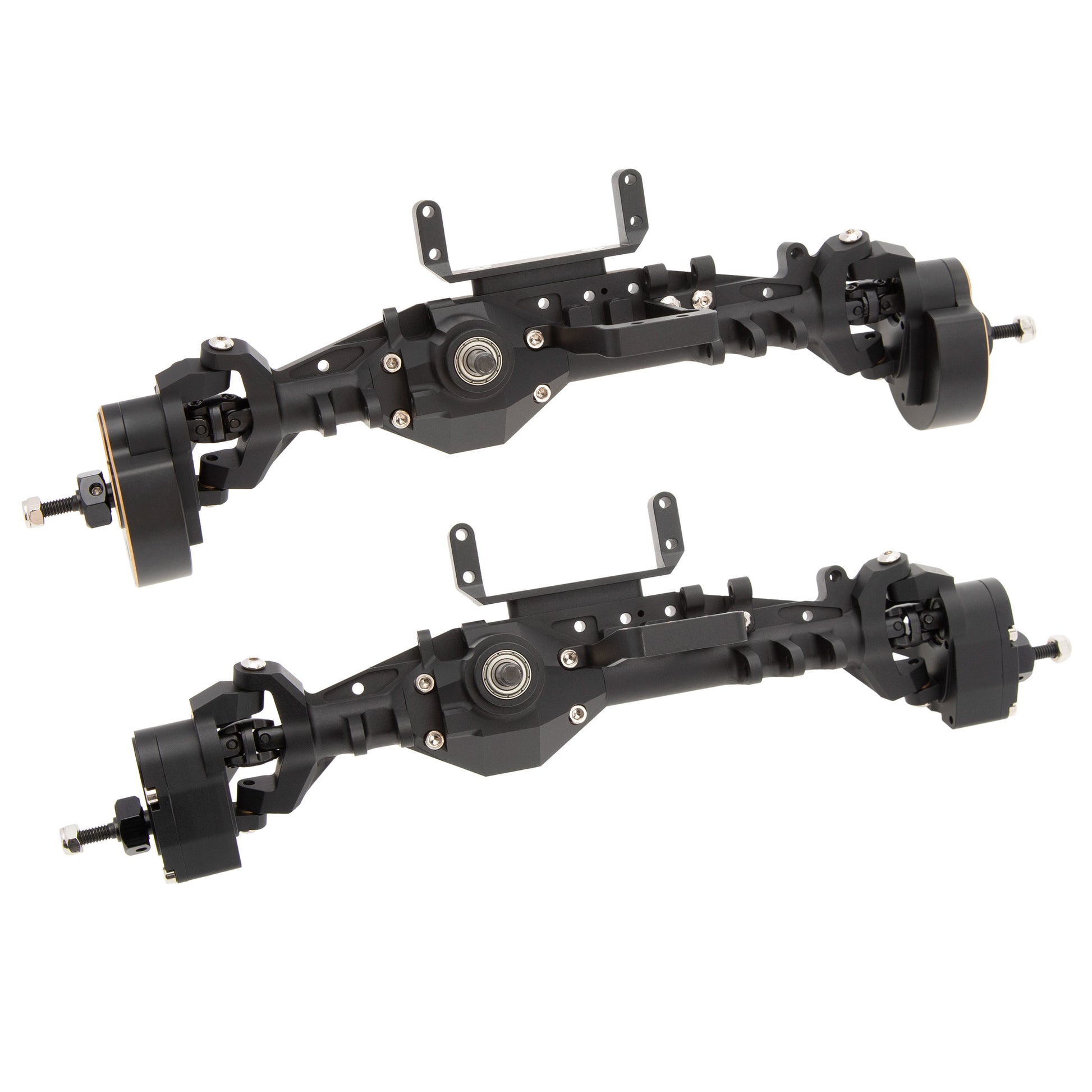

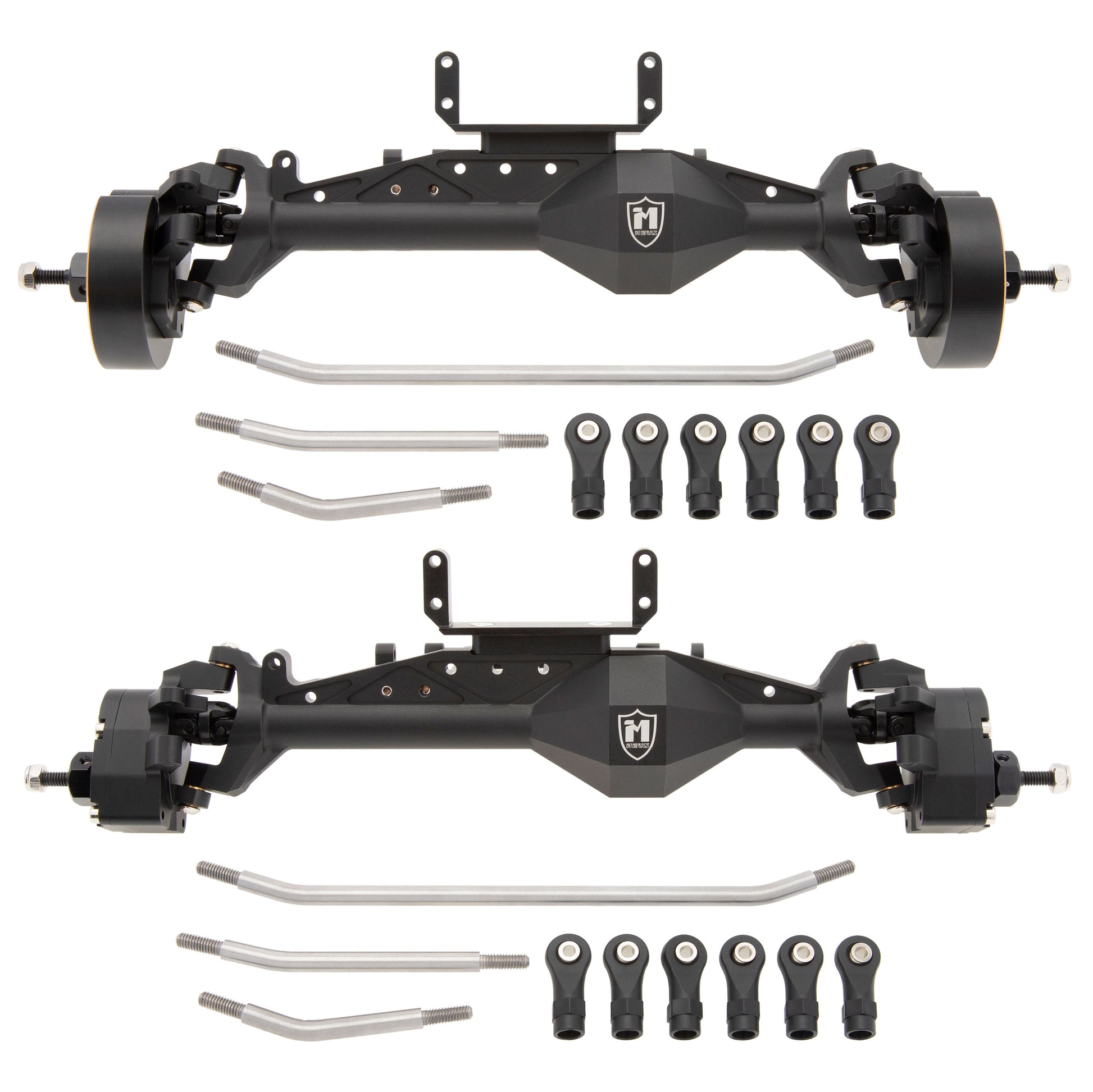

Black 1/10 Axial Capra 1.9 UTB 2 front axles
Black 1/10 Axial Capra 1.9 UTB 2 front axles
Black 1/10 Axial Capra 1.9 UTB 2 front axles
Black 1/10 Axial Capra 1.9 UTB 2 front axles

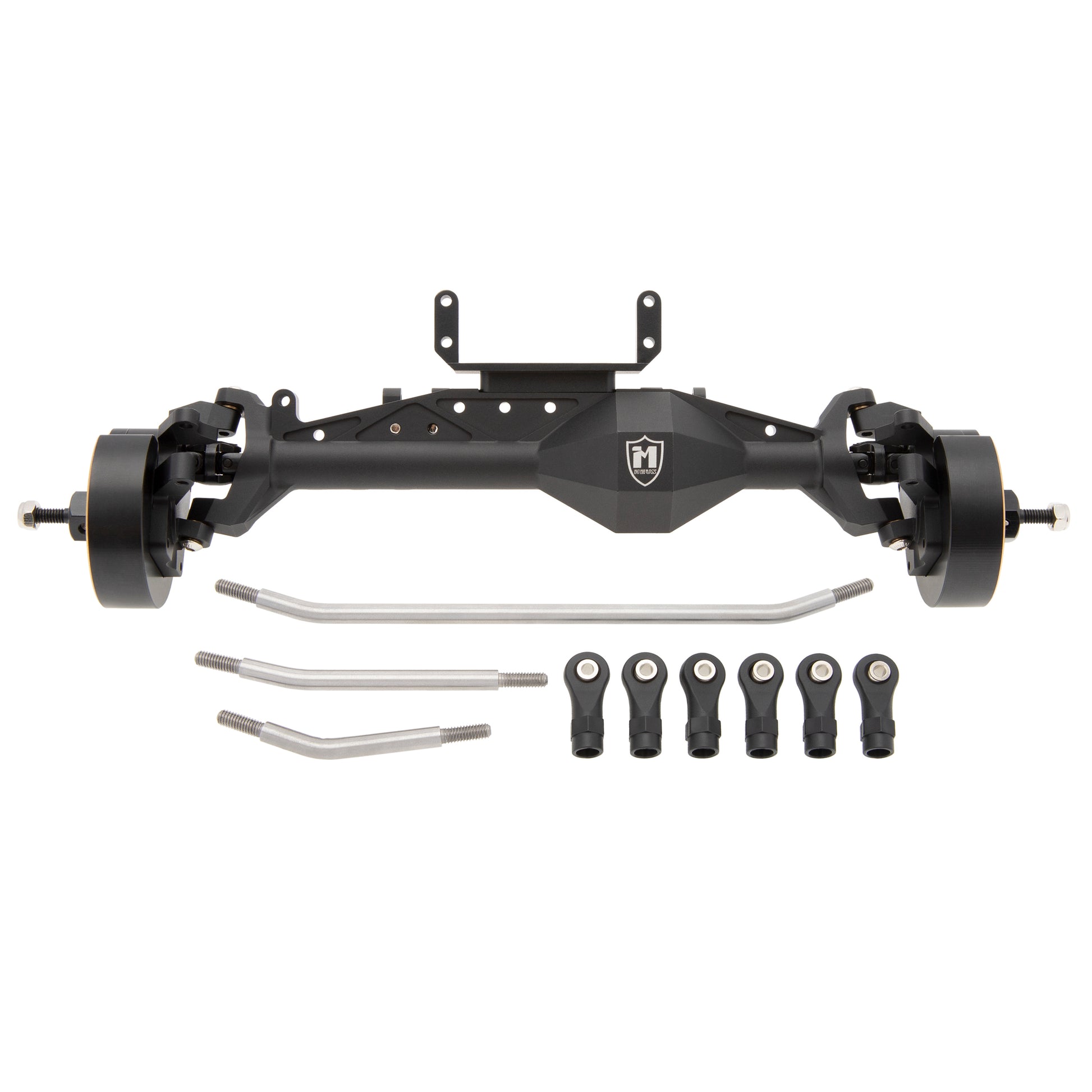

Black front Isokinetic 3 section axles for Capra UTB
Black 1/10 Axial Capra 1.9 UTB front axle with 2 servo mounts

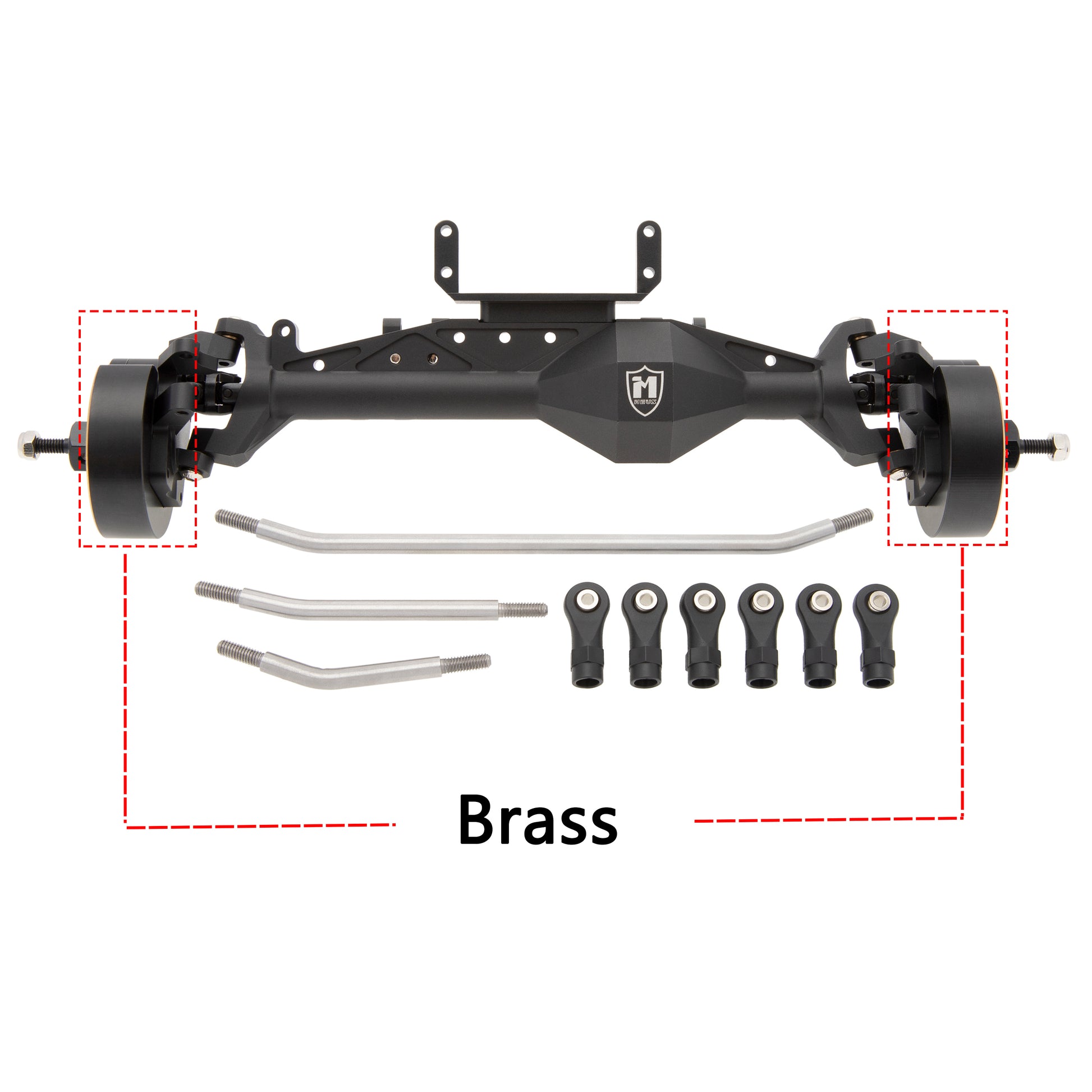

Black UTB 1.9 Brass front Portal axle
Black 1/10 Axial Capra 1.9 UTB front axle steering knuckle

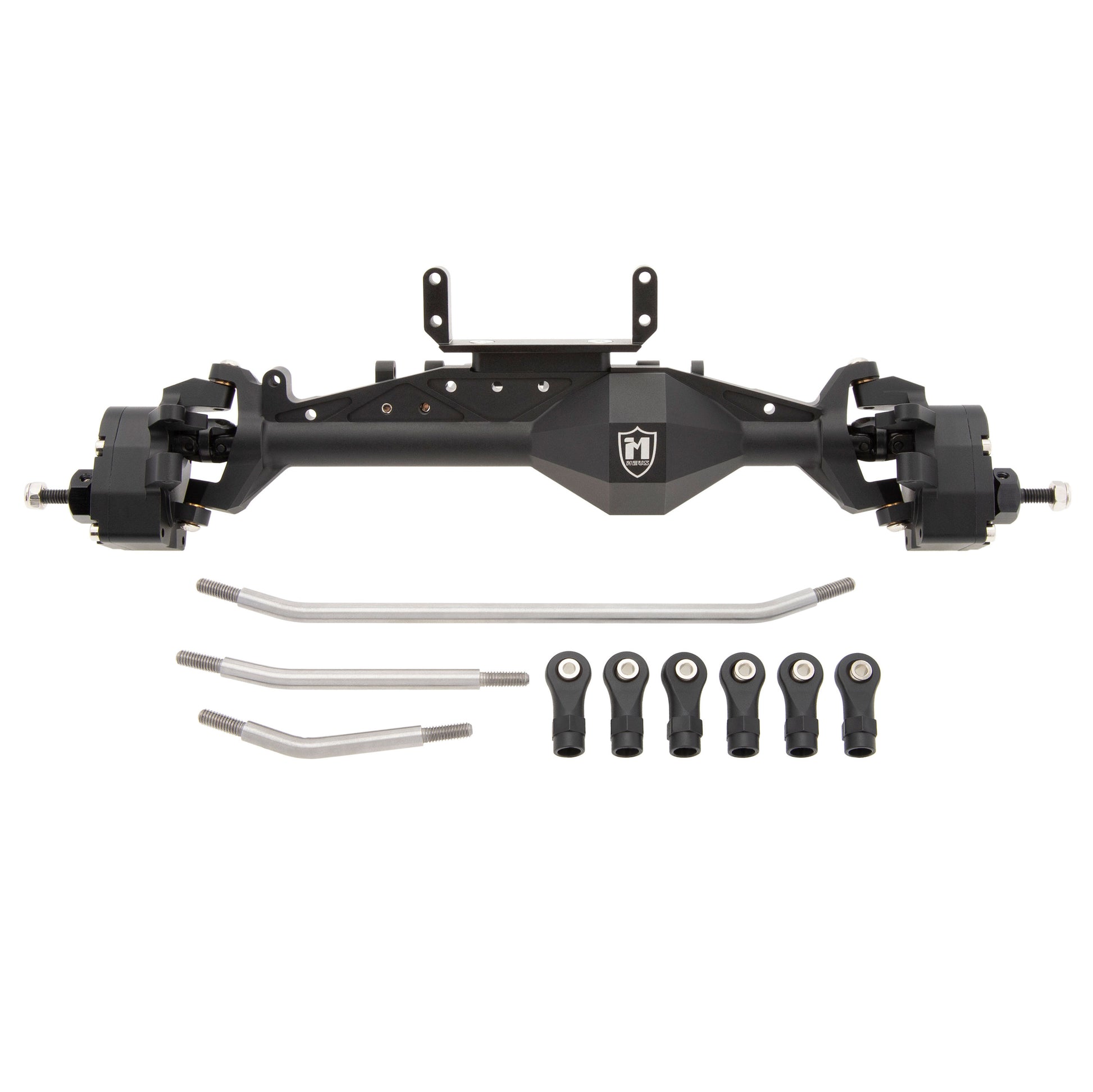

Black Front Isokinetic 3 section axles for Capra UTB-no the weights

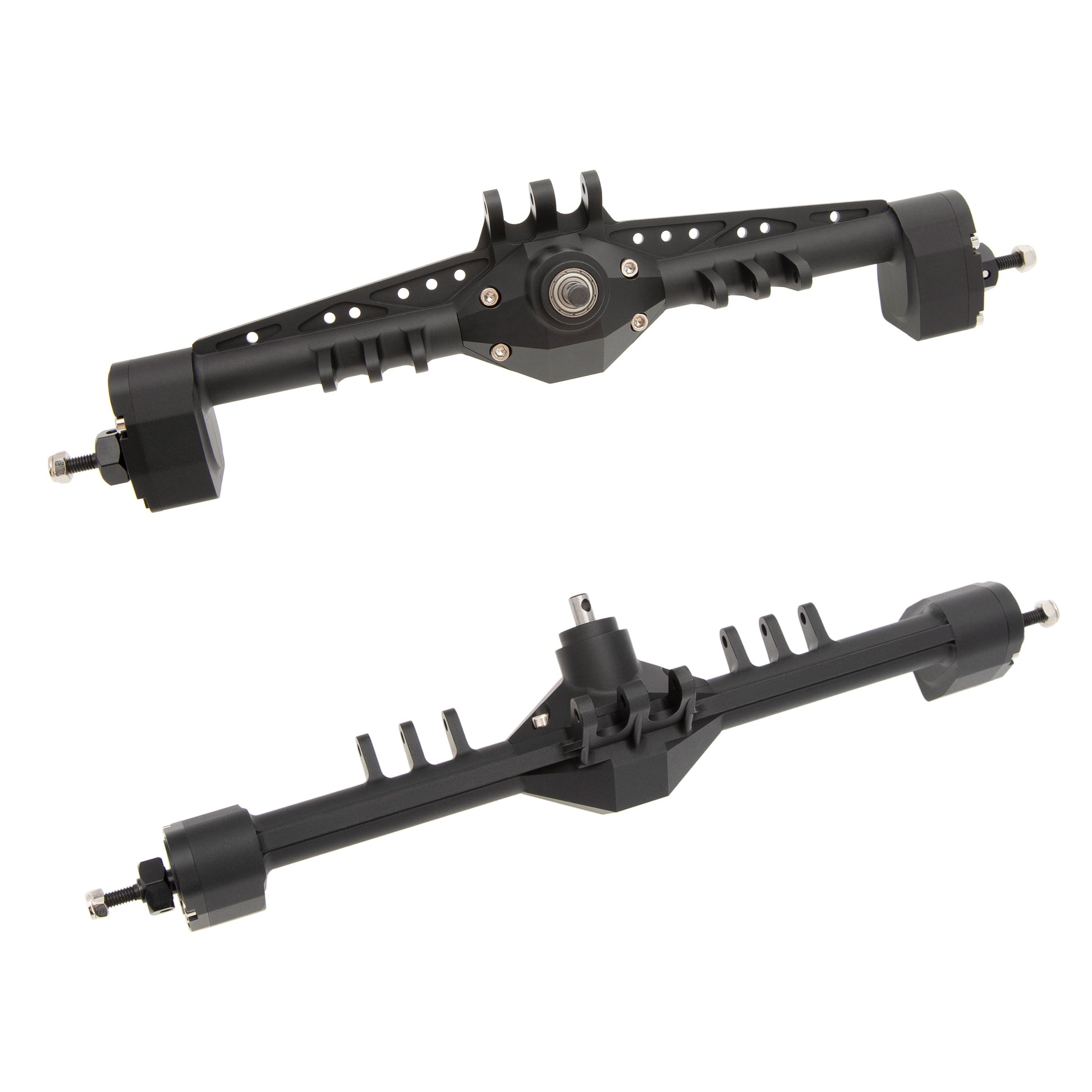

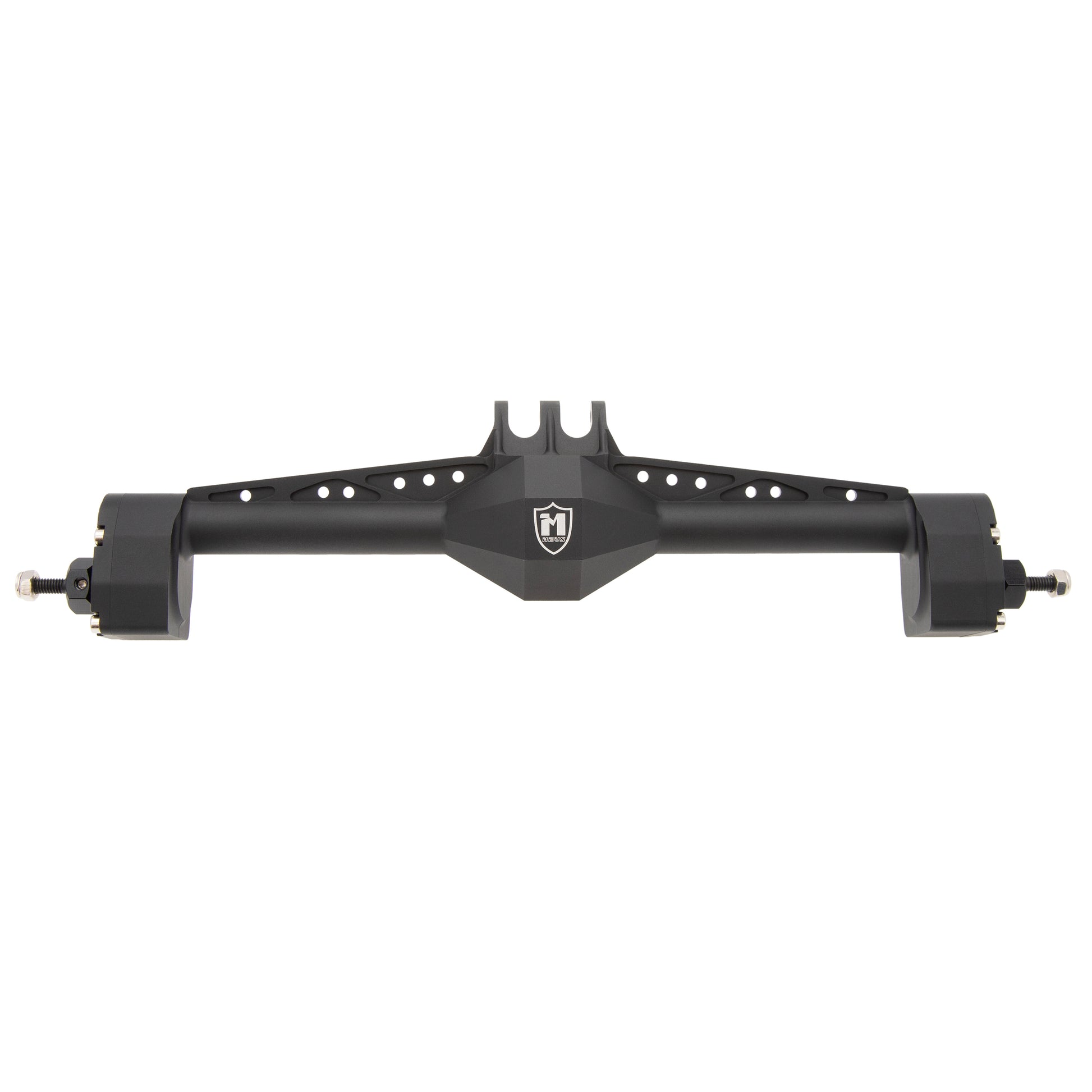

Black Rear Isokinetic 3 section axles for Capra UTB
Black Rear Isokinetic 3 section axles for Capra UTB

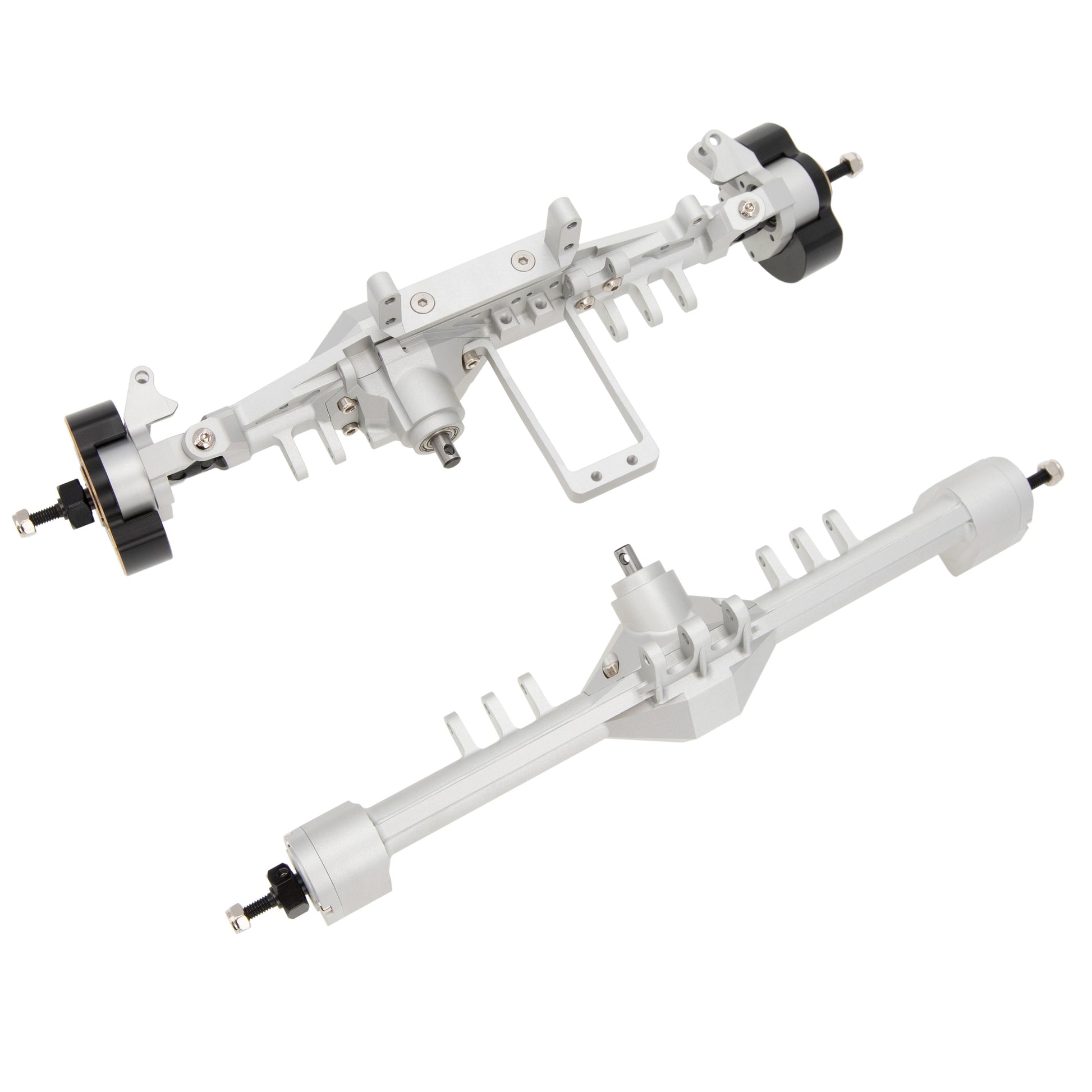

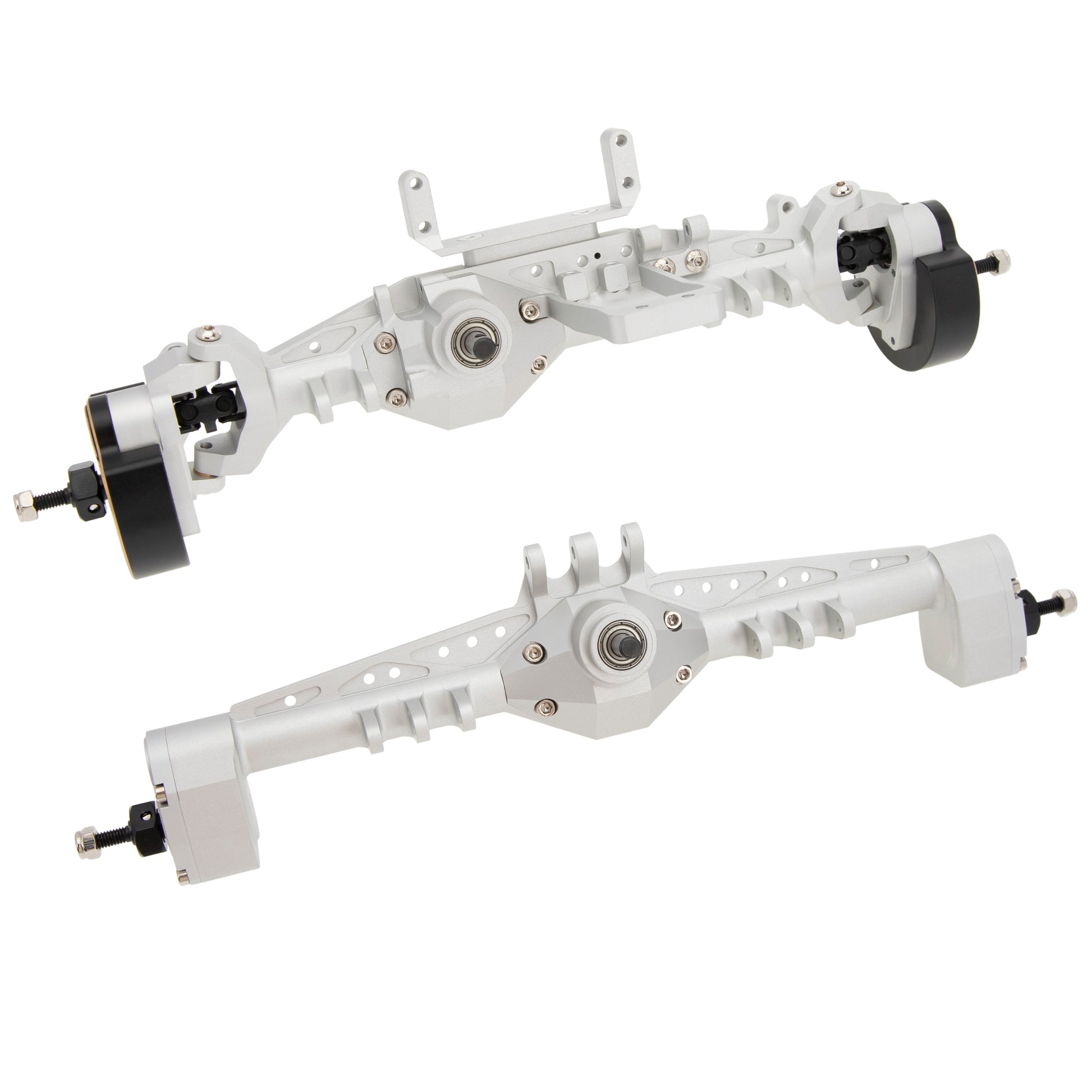

Silver 1/10 Axial Capra 1.9 UTB front rear axles
Silver 1/10 Axial Capra 1.9 UTB front rear axles
Silver UTB 1.9 Capra Axle size
Silver 1/10 Axial Capra 1.9 UTB front rear axles
Silver 1/10 Axial Capra 1.9 UTB front rear axles

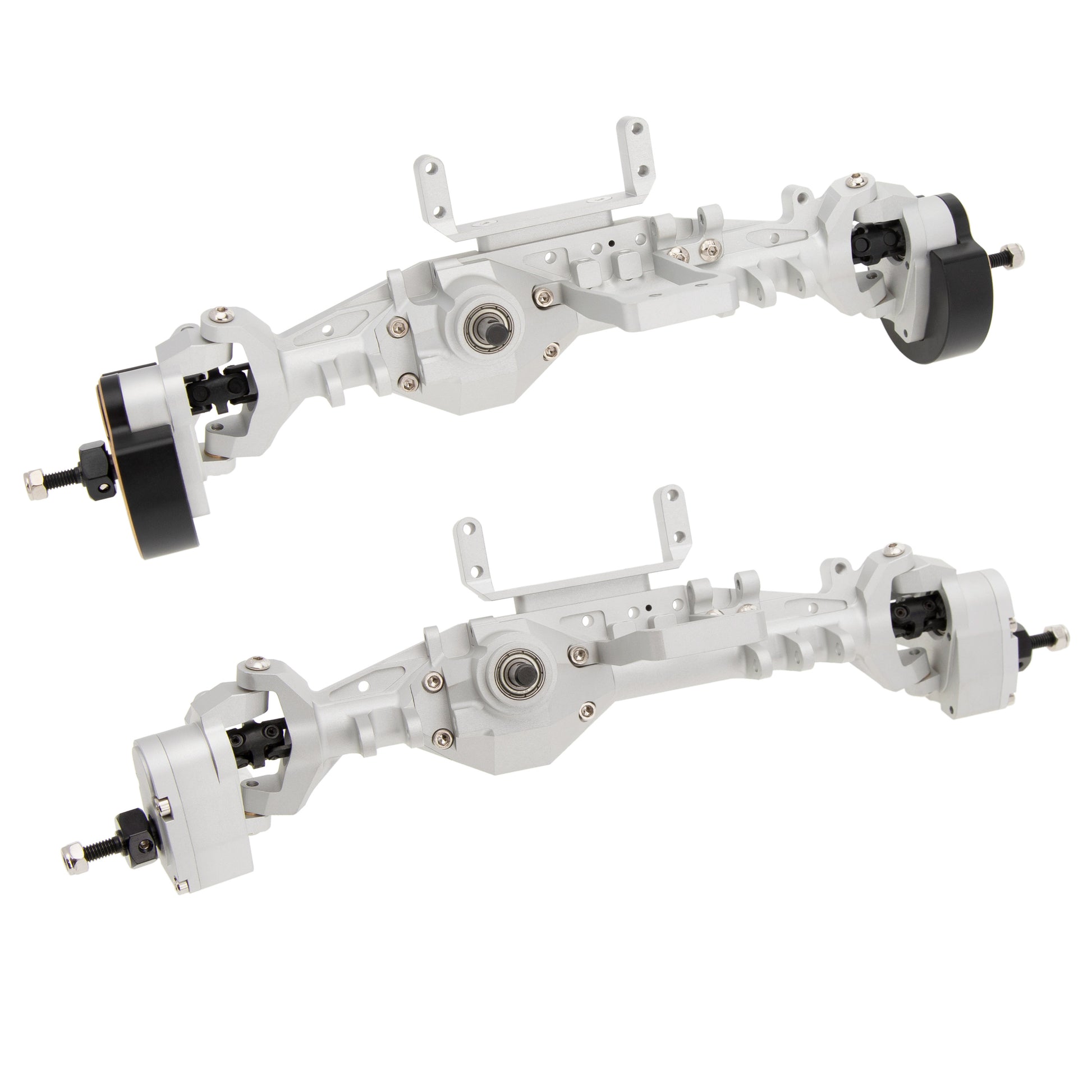

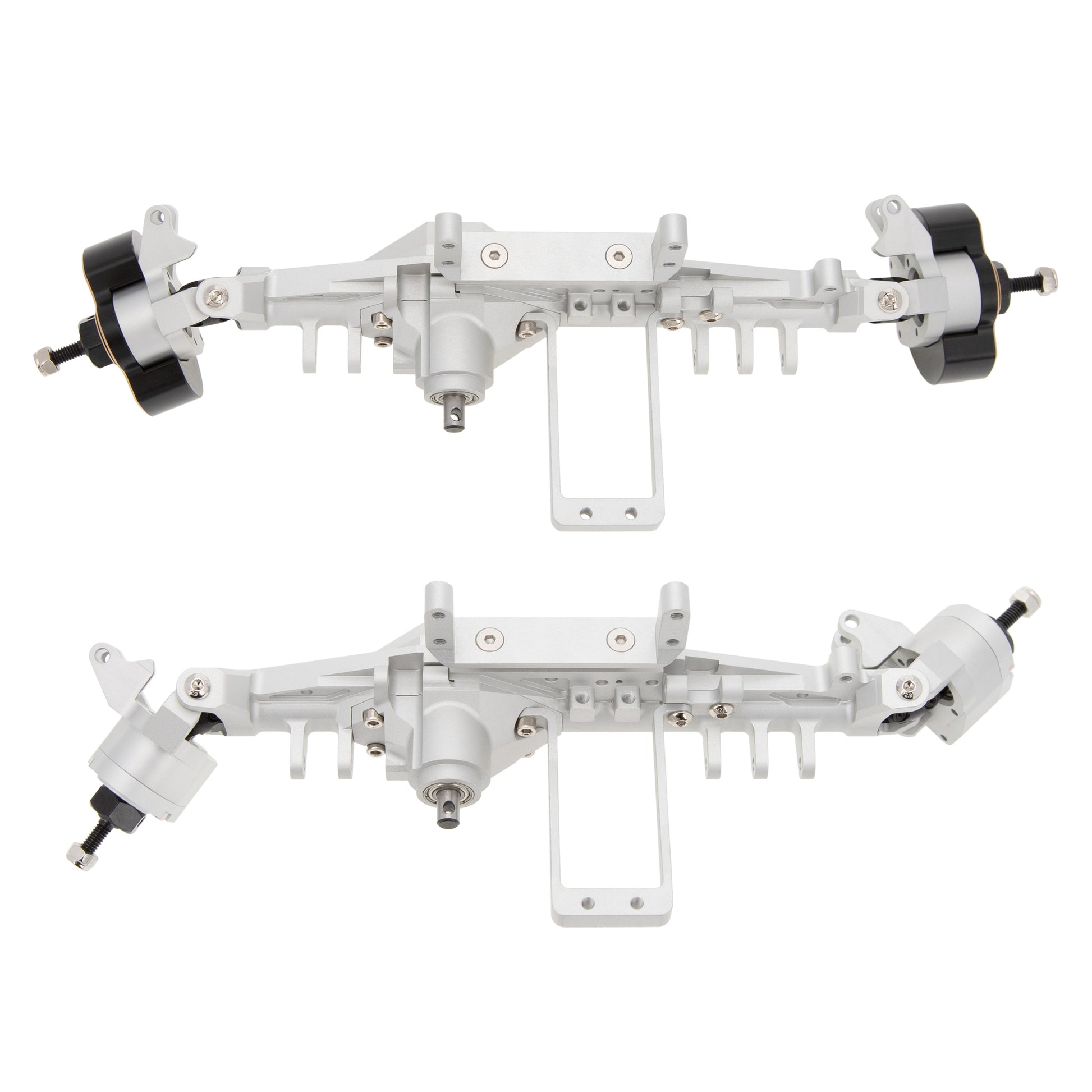

Silver 1/10 Axial Capra 1.9 UTB 2 front axles
Silver 1/10 Axial Capra 1.9 UTB 2 front axles
Silver 1/10 Axial Capra 1.9 UTB 2 front axles

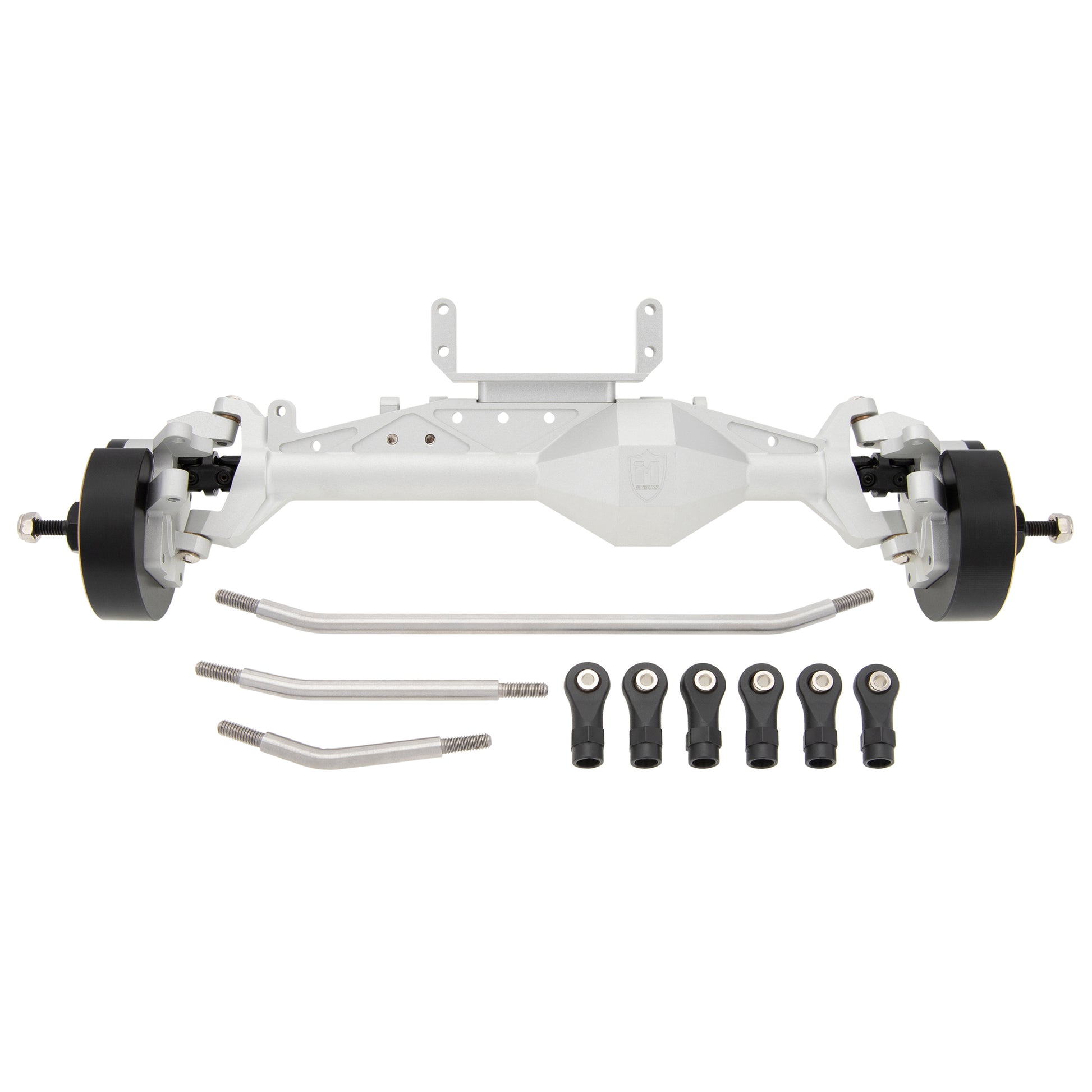

Silver Front Isokinetic 3 section axles for Capra UTB
Silver 1/10 Axial Capra 1.9 UTB front axle with 2 servo mounts
Silver UTB 1.9 Brass front Portal axle
Silver 1/10 Axial Capra 1.9 UTB front axle steering knuckle
Silver Front Isokinetic 3 section axles for Capra UTB-no the weights

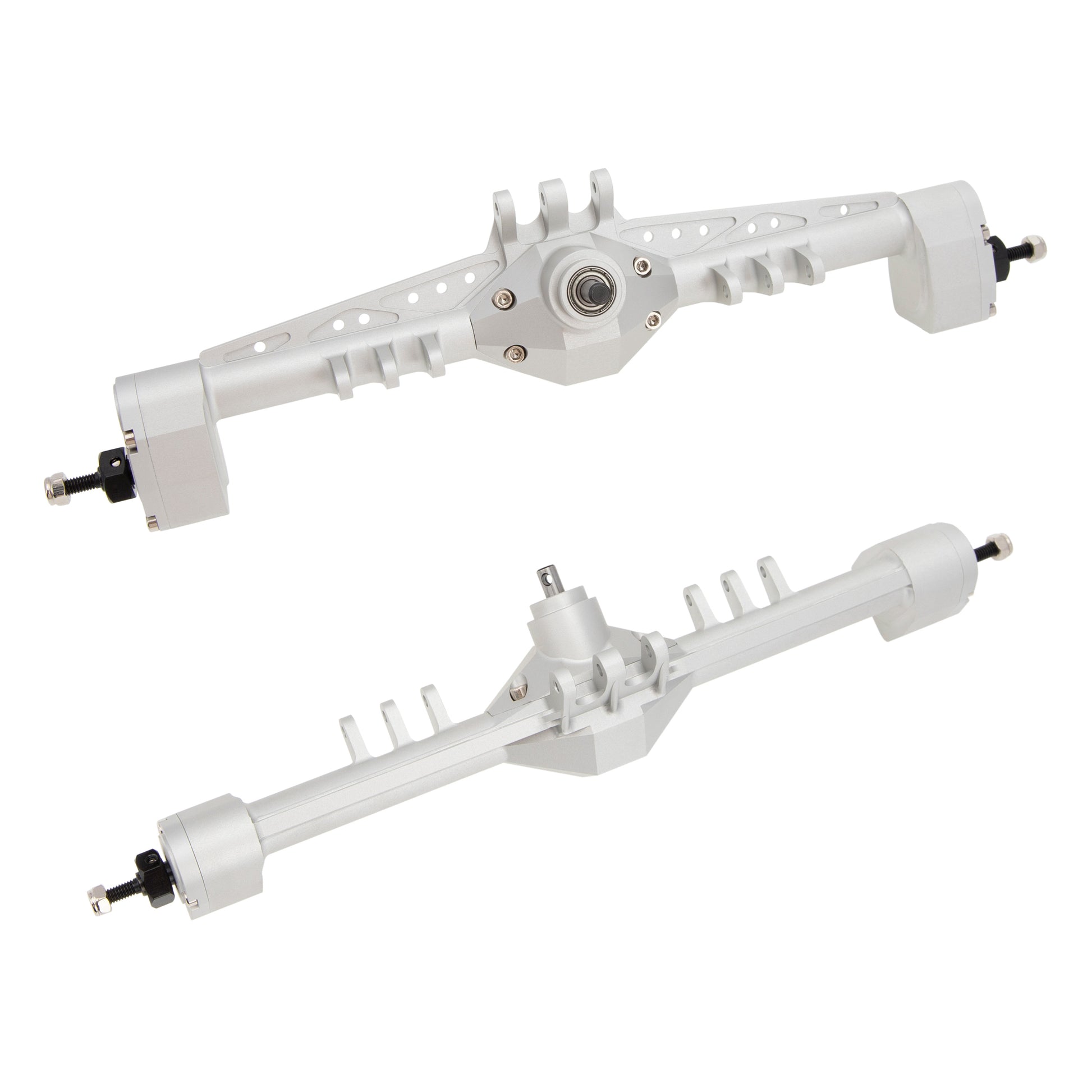

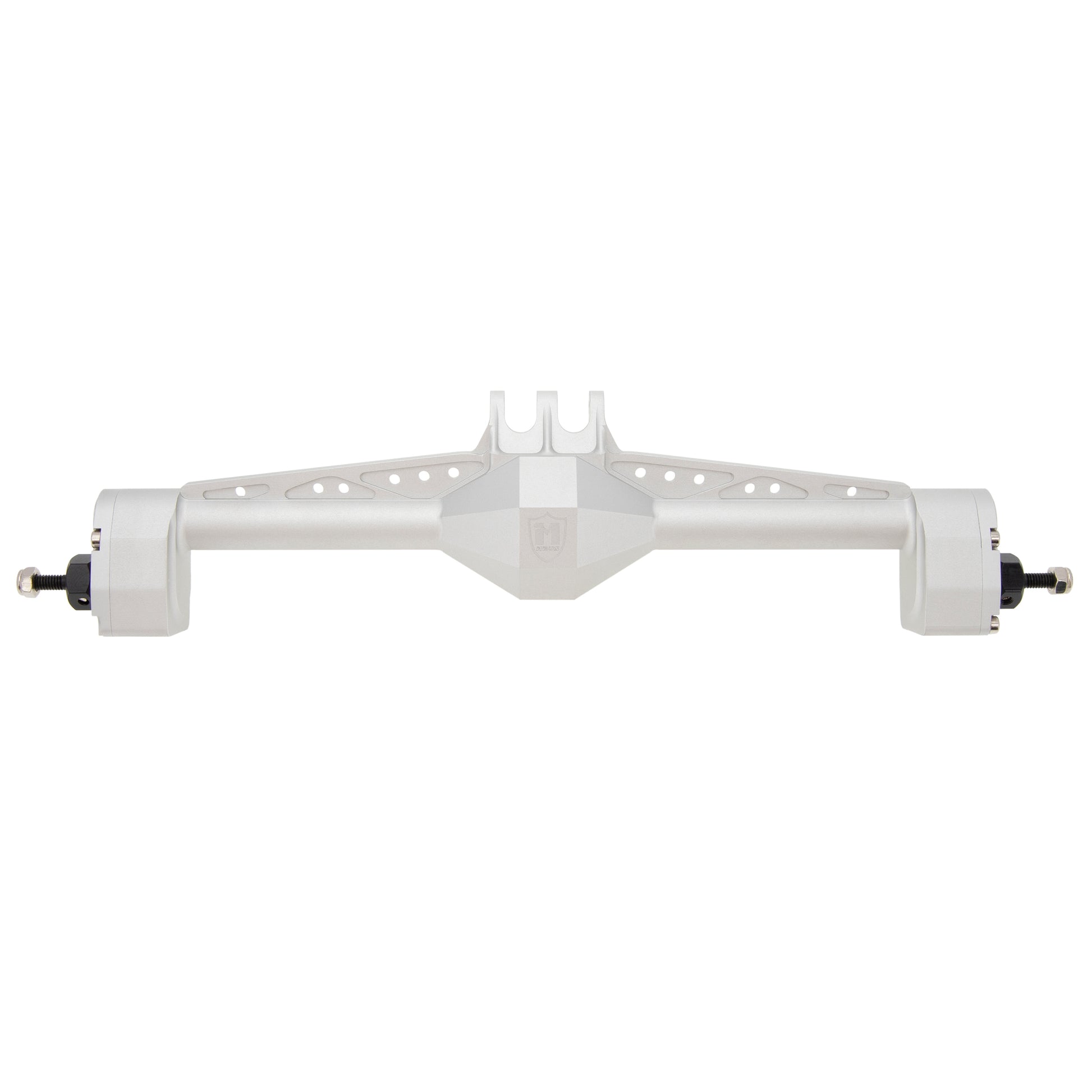

Silver Rear Isokinetic 3 section axles for Capra UTB
Black Rear Isokinetic 3 section axles for Capra UTB
Black 1/10 Axial Capra 1.9 UTB front rear axles
Black 1/10 Axial Capra 1.9 UTB front rear axles
Black UTB 1.9 Capra front rear axles size
1/10 Axial Capra 1.9 UTB front rear axles size
Servo Installation
Black 1/10 Axial Capra 1.9 UTB front rear axles
Black 1/10 Axial Capra 1.9 UTB front rear axles steering knuckle
Black 1/10 Axial Capra 1.9 UTB 2 front axles
Black 1/10 Axial Capra 1.9 UTB 2 front axles
Black 1/10 Axial Capra 1.9 UTB 2 front axles
Black 1/10 Axial Capra 1.9 UTB 2 front axles
Black front Isokinetic 3 section axles for Capra UTB
Black 1/10 Axial Capra 1.9 UTB front axle with 2 servo mounts
Black UTB 1.9 Brass front Portal axle
Black 1/10 Axial Capra 1.9 UTB front axle steering knuckle
Black Front Isokinetic 3 section axles for Capra UTB-no the weights
Black Rear Isokinetic 3 section axles for Capra UTB
Black Rear Isokinetic 3 section axles for Capra UTB
Silver 1/10 Axial Capra 1.9 UTB front rear axles
Silver 1/10 Axial Capra 1.9 UTB front rear axles
Silver UTB 1.9 Capra Axle size
Silver 1/10 Axial Capra 1.9 UTB front rear axles
Silver 1/10 Axial Capra 1.9 UTB front rear axles
Silver 1/10 Axial Capra 1.9 UTB 2 front axles
Silver 1/10 Axial Capra 1.9 UTB 2 front axles
Silver 1/10 Axial Capra 1.9 UTB 2 front axles

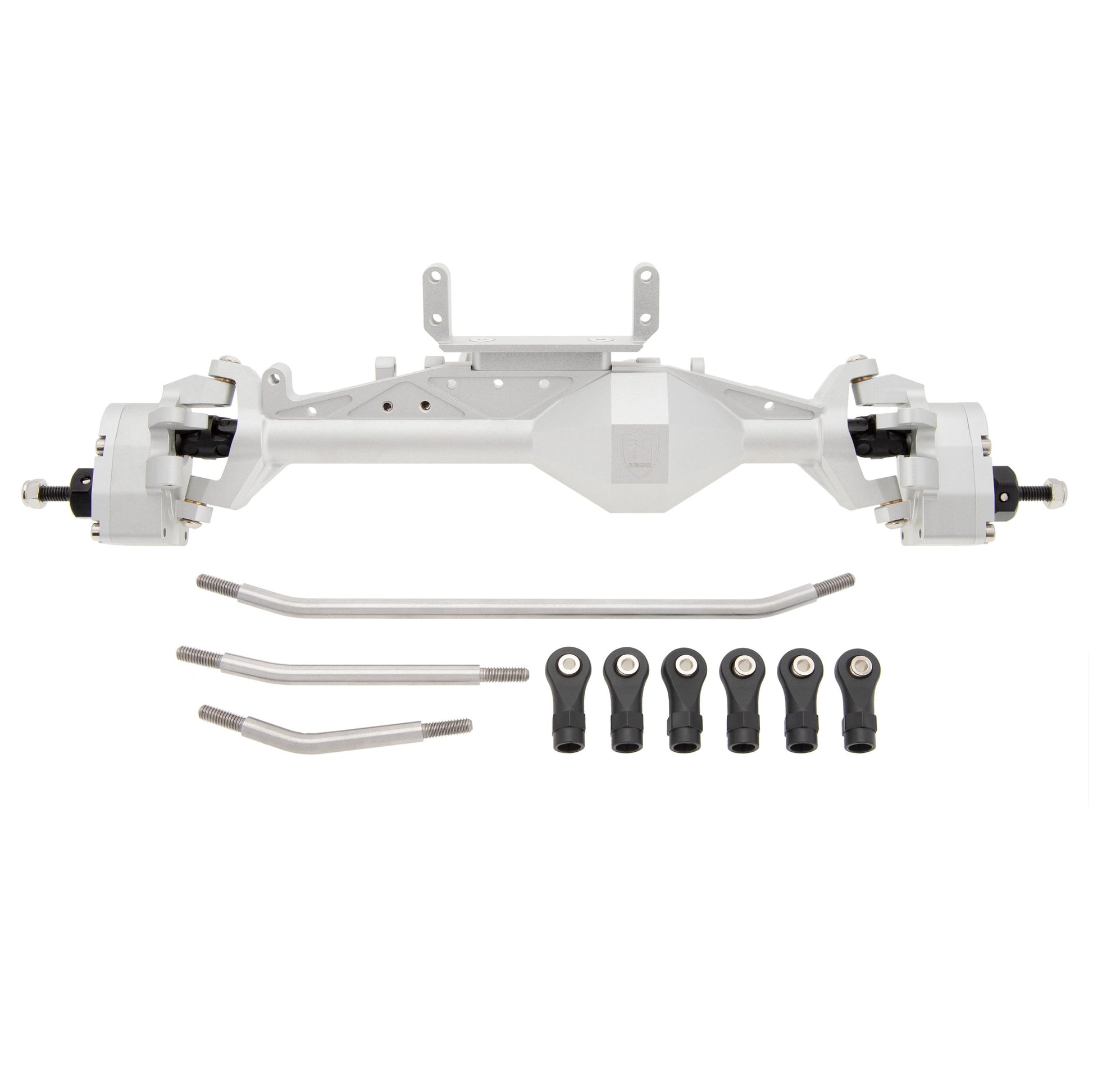

Silver Front Isokinetic 3 section axles for Capra UTB
Silver 1/10 Axial Capra 1.9 UTB front axle with 2 servo mounts
Silver UTB 1.9 Brass front Portal axle
Silver 1/10 Axial Capra 1.9 UTB front axle steering knuckle
Silver Front Isokinetic 3 section axles for Capra UTB-no the weights
Silver Rear Isokinetic 3 section axles for Capra UTB
Black Rear Isokinetic 3 section axles for Capra UTB

MEUS Racing Isokinetic 3-Section CVDs Portal Front Rear Axles for 1/10 Axial Capra 1.9 UTB DIY SCX10 SCX10 II

Regular price $169.99 USD
Sale price $169.99 USD Regular price $179.99 USD
Unit price
Black Front & Rear Axles
Black 4WS 2 Front Axles
Black Front Axle
Black Front Axle-no the weights
Black Rear Axle
Silver Front & Rear Axles

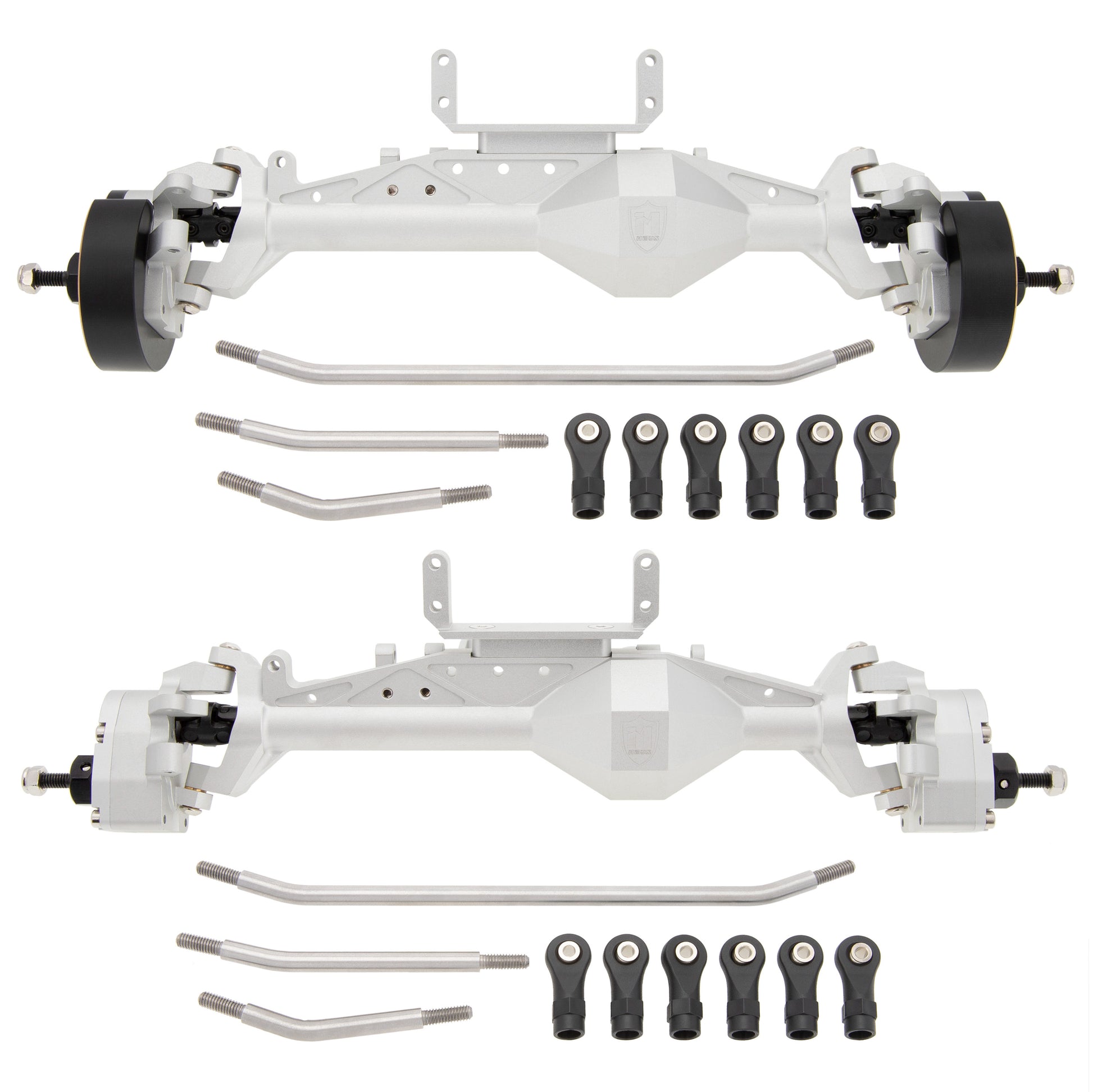

Silver 4WS 2 Front Axles
Silver Front Axle
Silver Front Axle-no the weights
Silver Rear Axle
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery:Nov 08 - Nov 12

  • Free Shipping: On all orders over $60

Black 1/10 Axial Capra 1.9 UTB front rear axles

MEUS Racing Isokinetic 3-Section CVDs Portal Front Rear Axles for 1/10 Axial Capra 1.9 UTB DIY SCX10 SCX10 II

Product description
Shipping & Return

MEUS Racing Capra 1.9 Portal Axles Kit with Isokinetic 3-Section CVDs, Ackerman Steering Structure, and 2 Servo Mounts Output shaft 6mm-M4 for 1/10 Axial Capra 1.9 UTB AXI03004 LCG Chassis and DIY SCX10 SCX10 II Upgrades Parts.

Key Features:

  • 1. Suitable for Axial 1/10 Capra, DIY SCX10 and SCX10 II chassis. It is also suitable for 1/10 Vanquish VRD Carbon and Vanquish H10 Rock Crawlers.
  • 2. Capra front and rear metal axles are made of high-quality aluminum alloy, and the output shaft is 40CR material.
  • 3. Equipped with 8/30T 20CR gears, it is sturdy and durable.

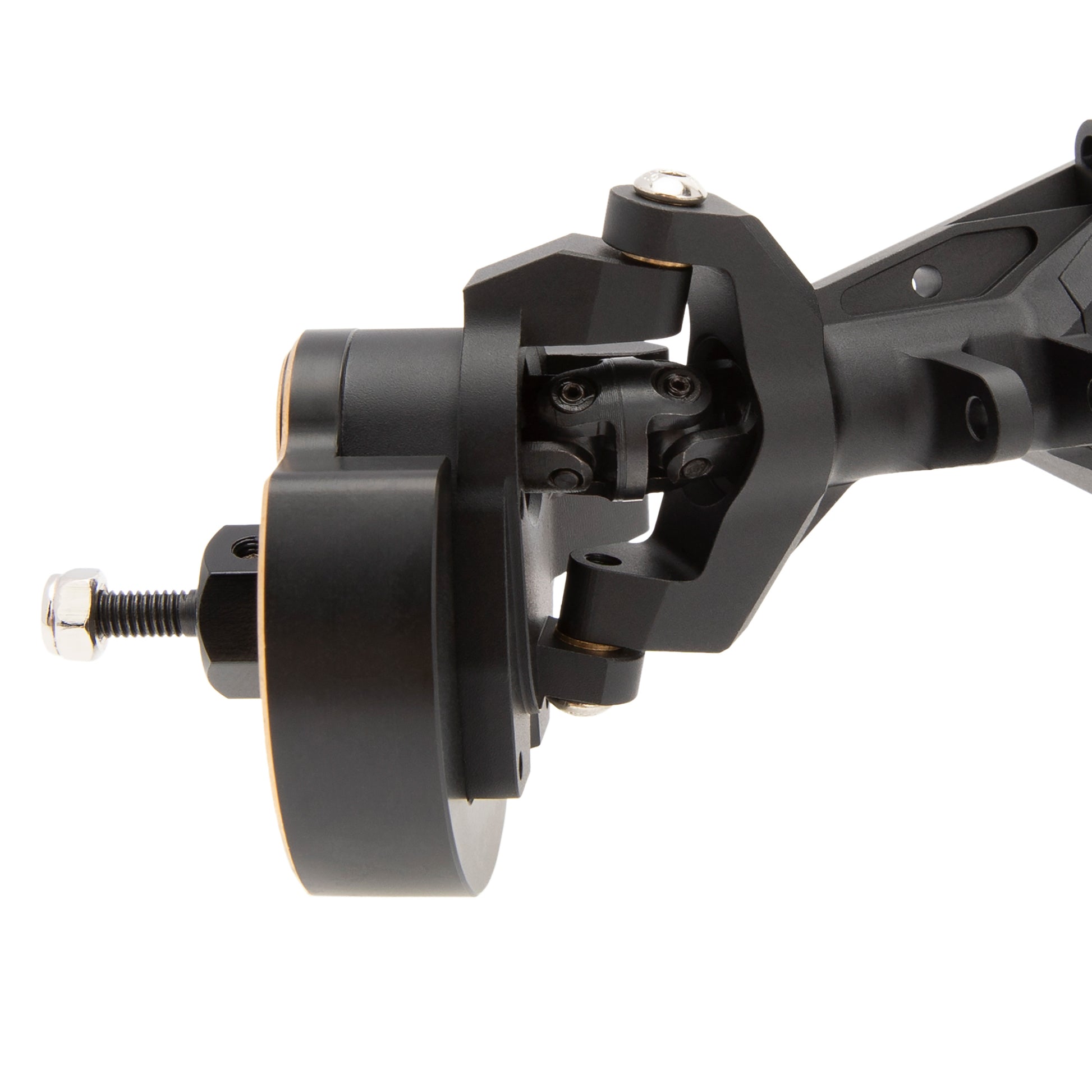

  • 4. Isokinetic 3-Section CVD structure ensures no shaking at high speed and large angle.
  • 5. The default steering angle is 48°. The steering angle can be increased to 55° by grinding the limit structure of the steering cup and using the widened ET kit(not included in the package) to increase the axle track.
  • 6. The front axle optimizes the C-HUB structure, and the smaller C-HUB can obtain better rocky road passability.

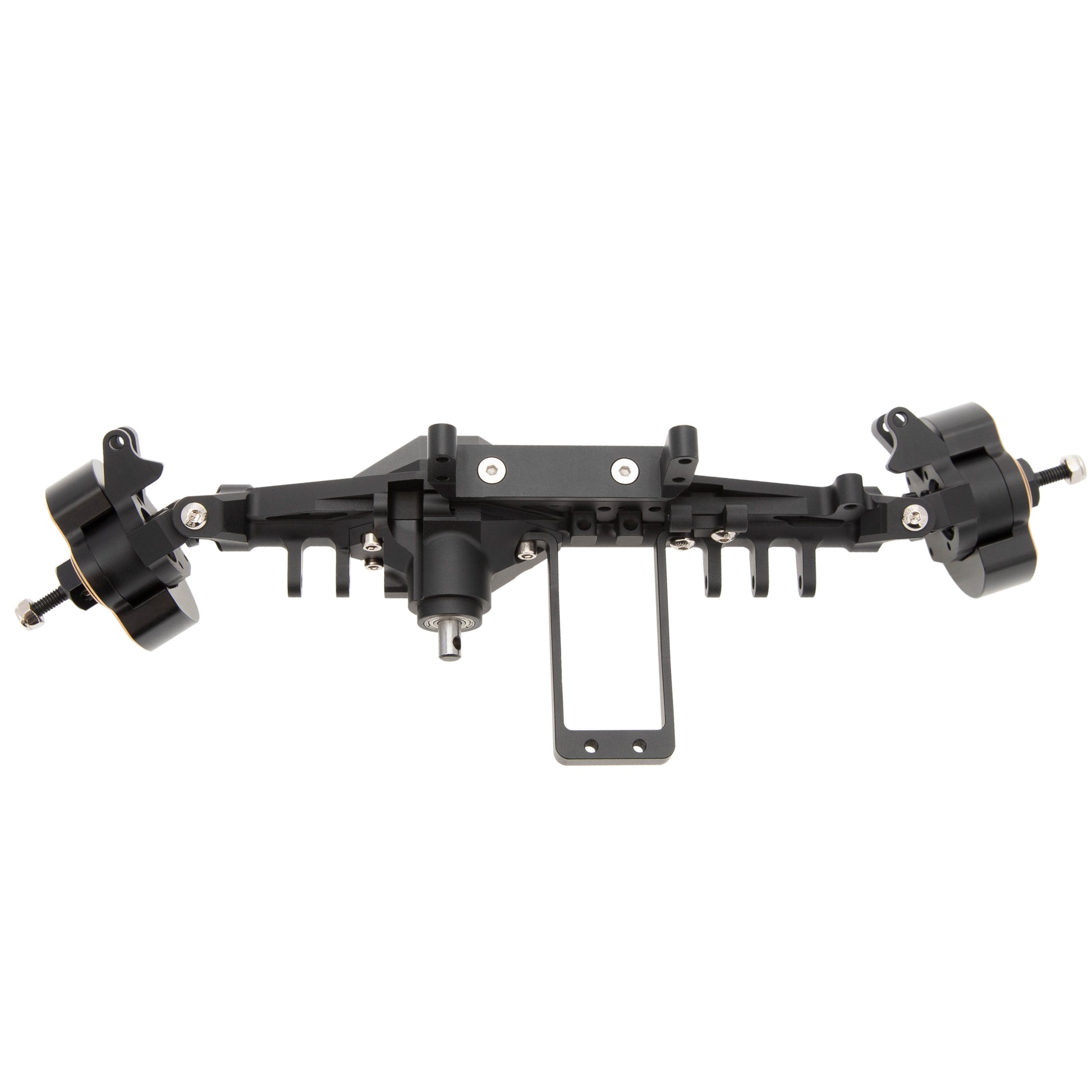

  • 7. The front axle is equipped with two servo mounting structures, which allows you to flexibly choose a better installation solution, and add a thrust rod mounting hole to obtain more adjustment space.

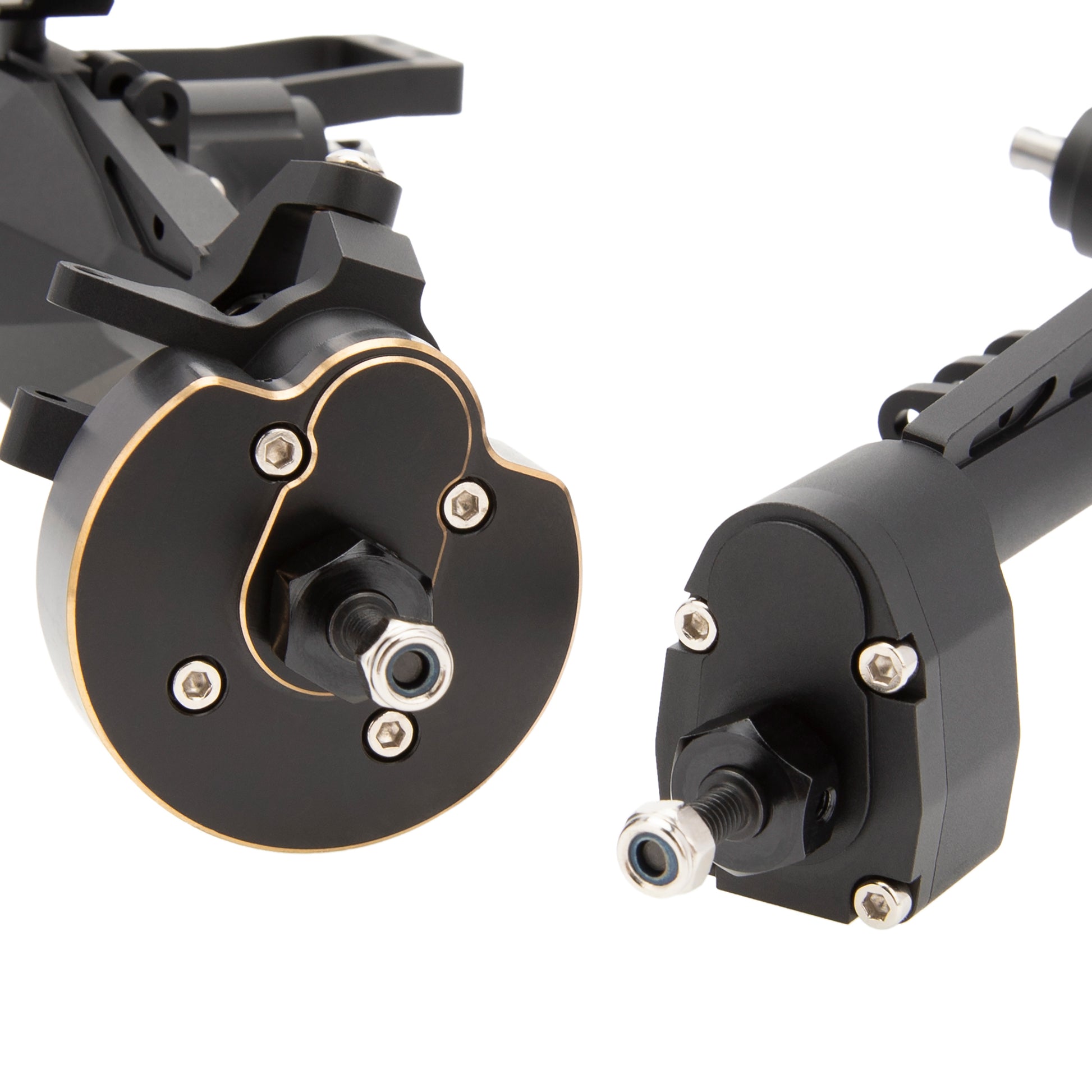

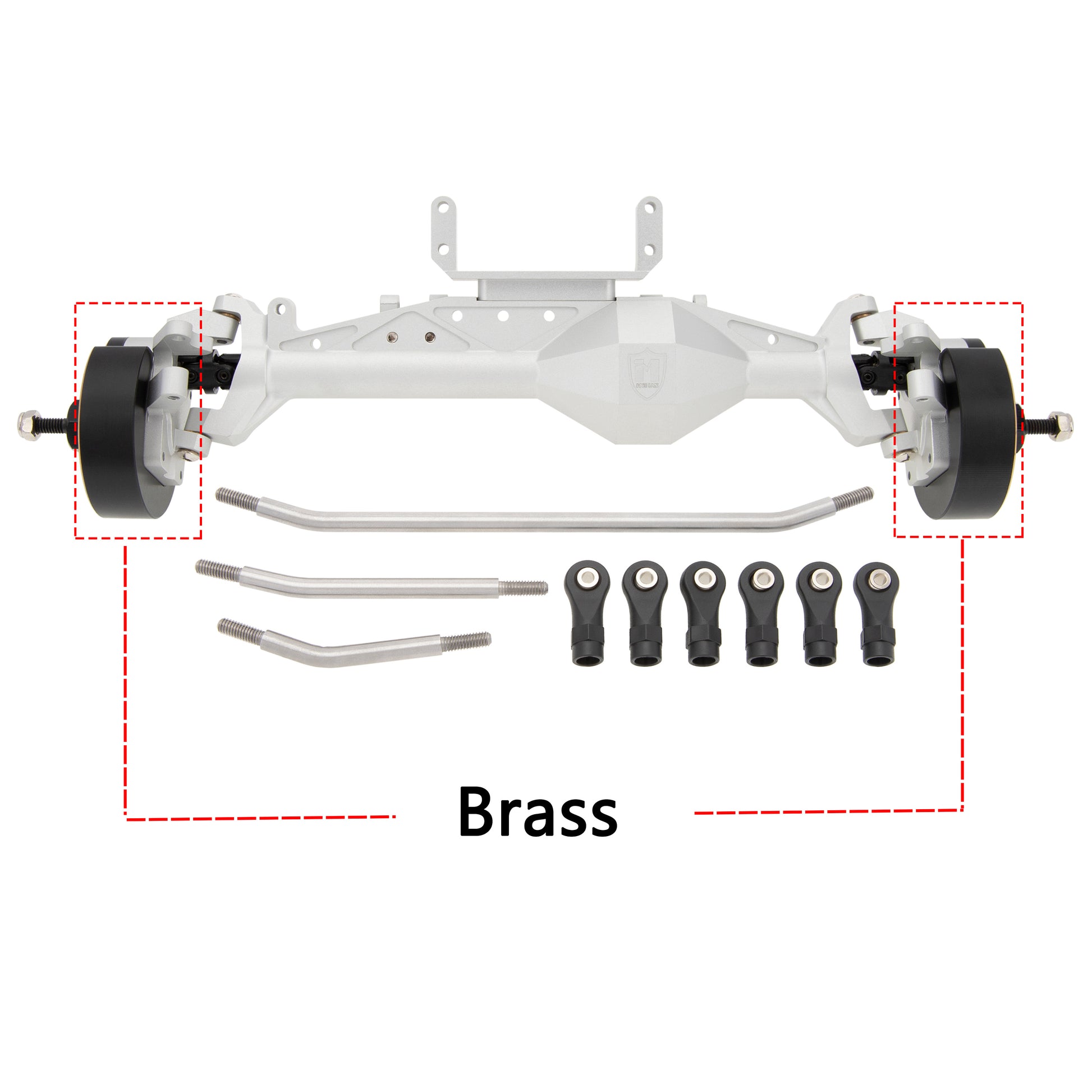

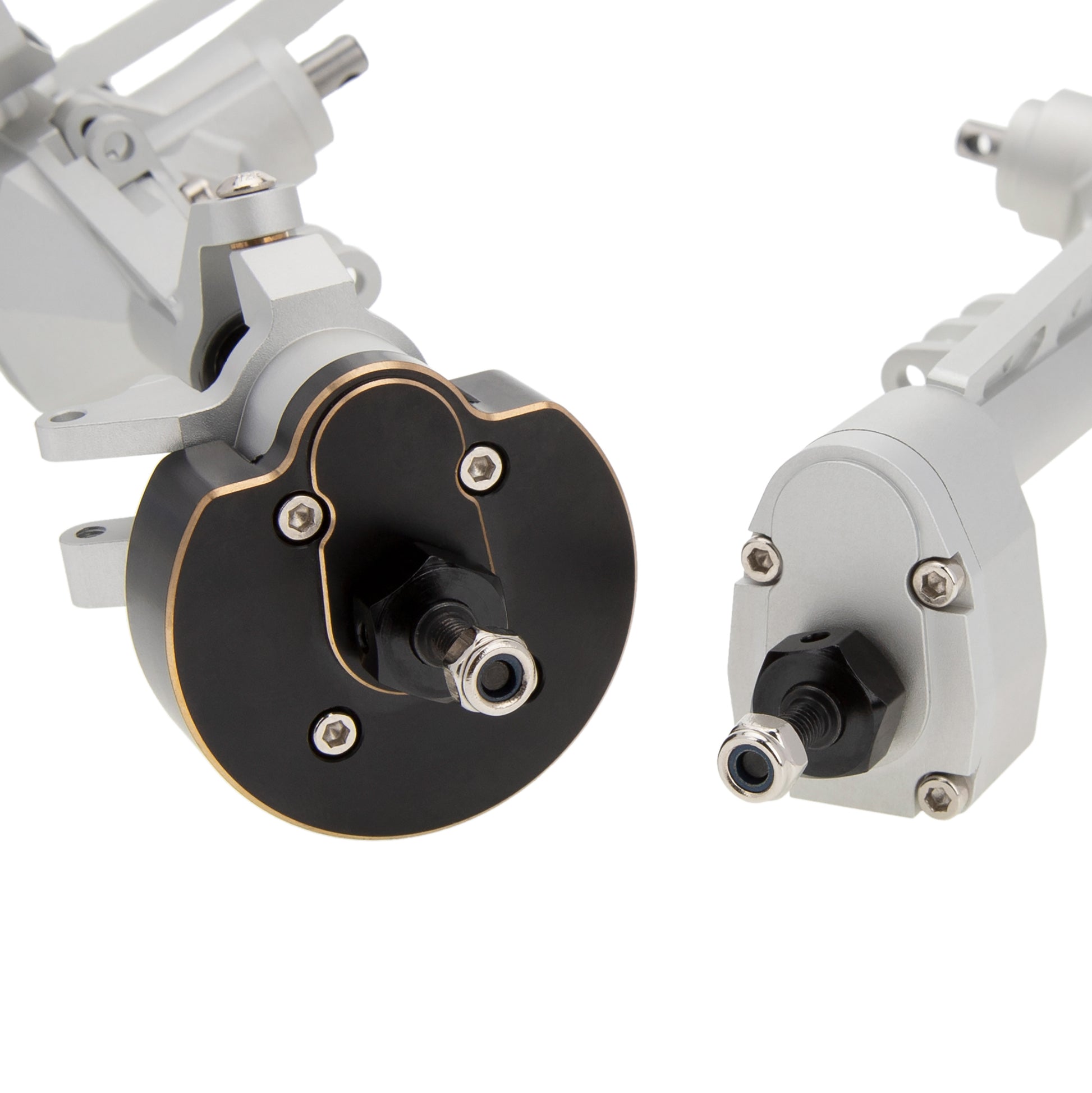

  • 8. The front axle has a 96G brass portal gear cover on one side. Get a better center of gravity offset.

Specifications:

  • Axle material: aluminum alloy
  • Gear Cover: Brass
  • Gear material: 20Cr Alloy Steel
  • CVD shaft material: 40Cr Alloy Steel
  • Gear ratio: 8/30T

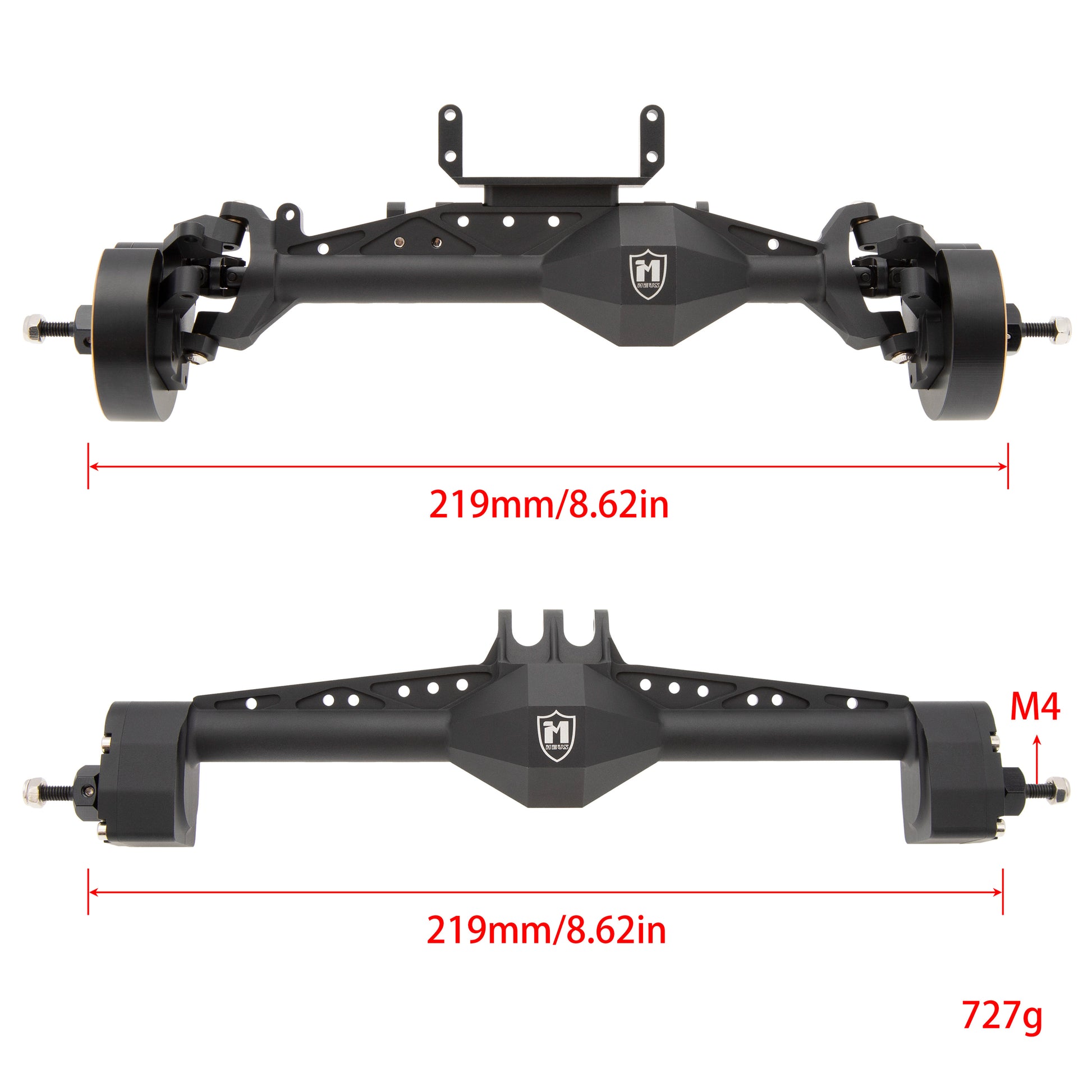

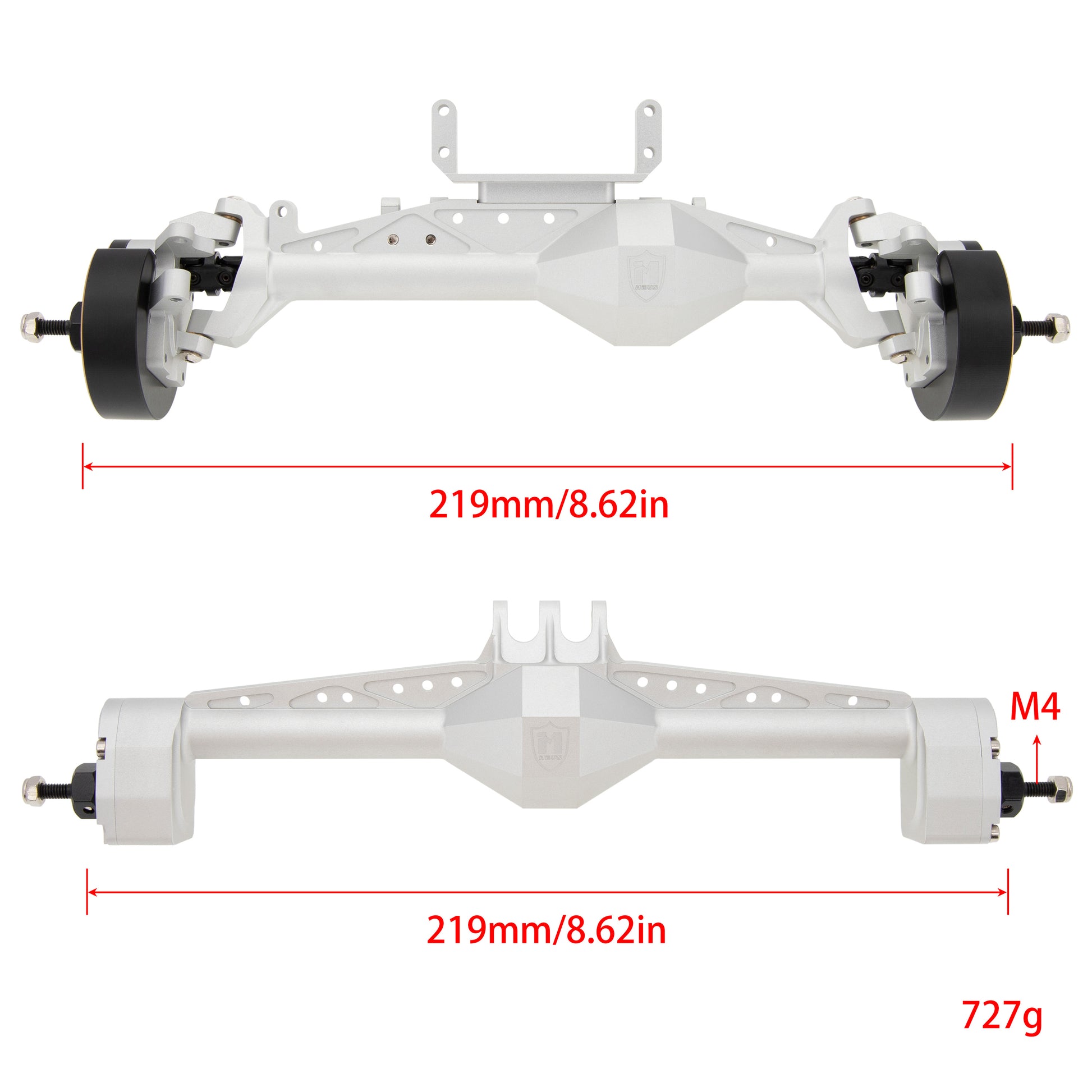

  • Front axle total length: 219mm(8.62in)
  • Rear axle total length: 219mm(8.62in)
  • Front axle weight: 476.3g
  • Rear axle weight: 250g
  • 2 Front axles weight: 742.6g
  • Front axle weight - no the weights: 265.7g
  • Bearing size: 5x11x3mm
  • Wheel hex adapter size: 6mm

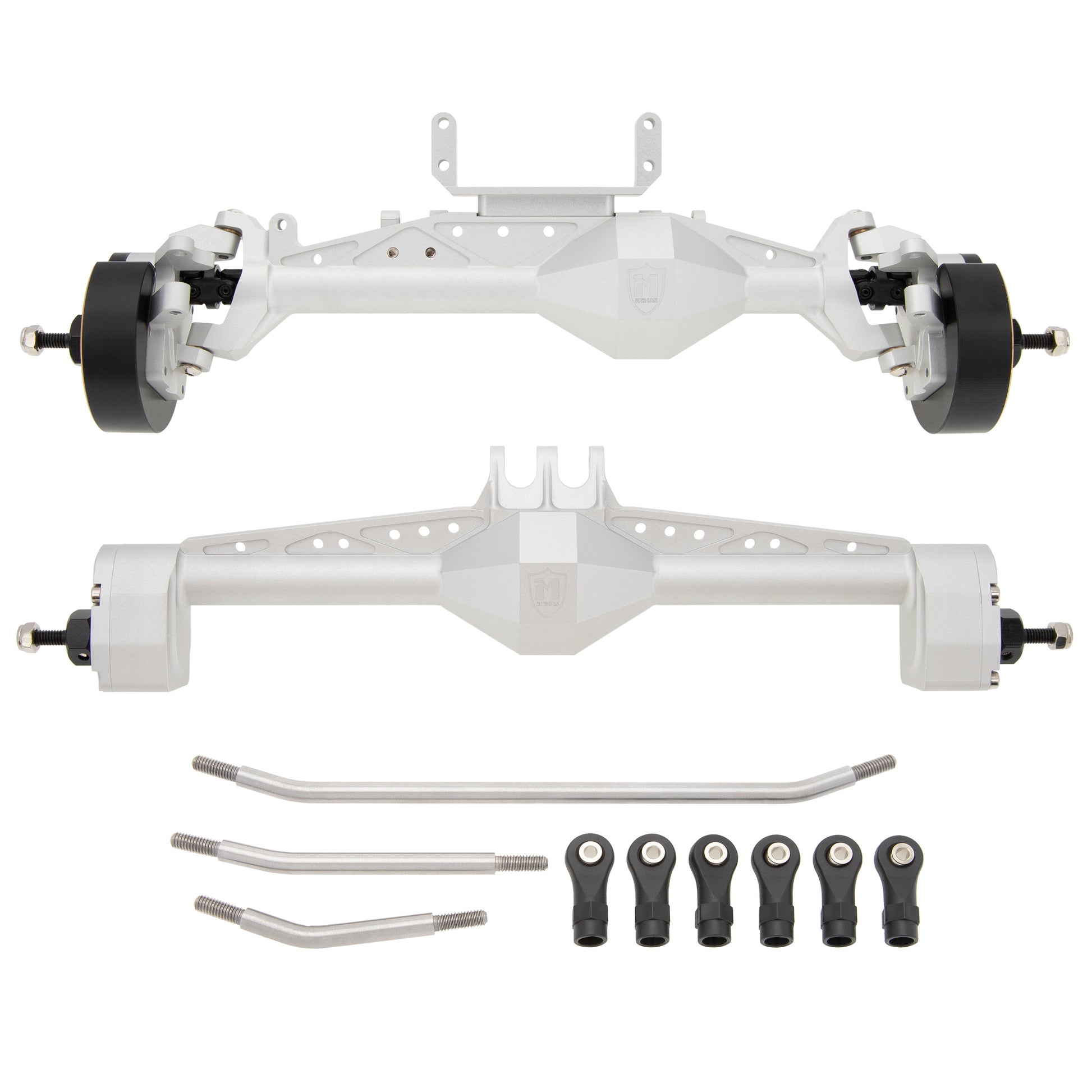

Packing list:

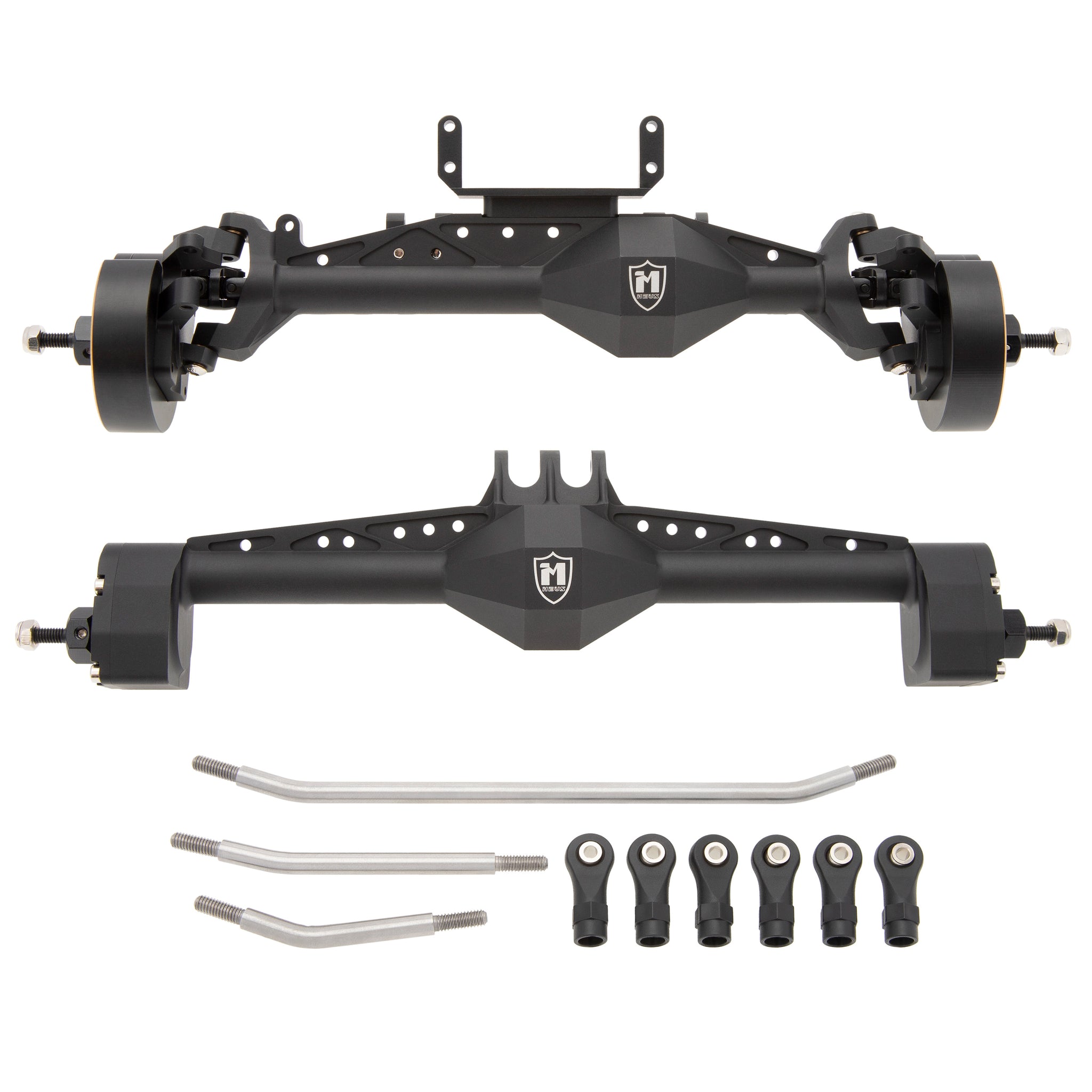

1 × Front and rear axle
3 × Connecting rod

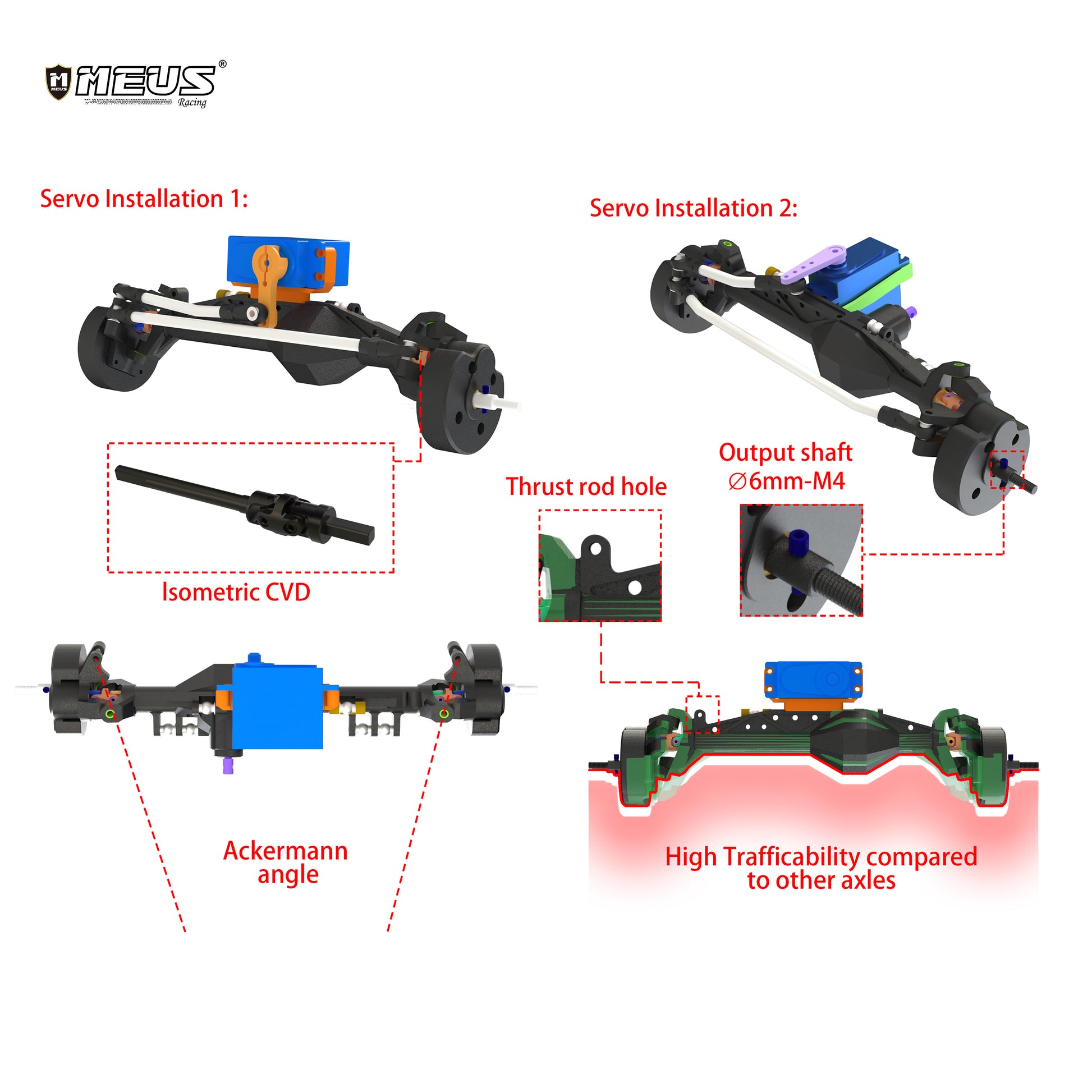

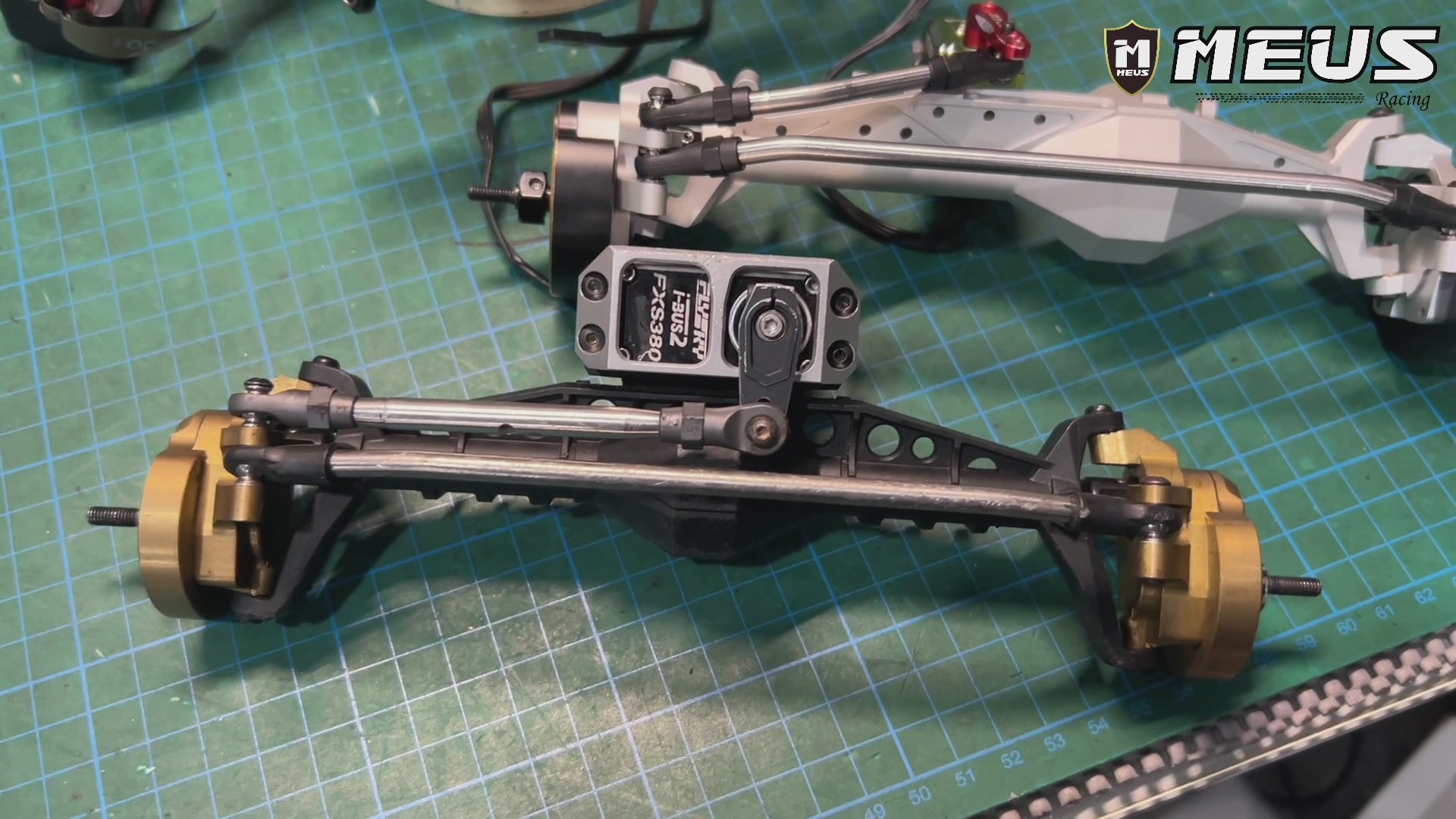

First servo mounting method:

First servo mounting method:

Second servo mounting method:

First servo mounting method:

Ackerman Steering

Ackerman Steering

1/10 Axial Capra 1.9 UTB Isokinetic 3-Section CVD Front Rear Axles Video Shows:

1. Processing time

Normally, orders after payment will be ready for shipment within 72 working hours on Monday to Friday. When there is a holiday or weekend, there may be a slight delay.



2. Shipping Cost

$2.99 for most countries, and we offer free shipping for orders over $60.

$4.99 for Canada, Norway, Switzerland and South Africa.



3. Warehouses

 All of the orders are ship from China.

We can ship to most of countries such as the United States, Canada, Europe, Australia, Japan, South Korea, etc.



4. Shipping time

In-stock orders are received by 18:00 (GMT+08:00)Monday-Friday and will usually ship the same day. Orders will usually ship the next business day if received after 18:00(GMT+08:00) or on Saturday, Sunday, or public holidays.

Items in your order may ship at different times, depending on availability. Usually, orders will be delivered within 10-15 business days.

Meus Racing will try to process orders within the stated time frame. Estimated delivery dates are not guaranteed. Meus Racing is not liable for shipping delays caused by severe weather or unforeseen events.

Meus Racing may need to contact customers to validate orders to ensure the security of purchases, which may cause delays. Transit time may vary depending on proximity to the distribution center and inventory availability.

Shipping information can be changed by contacting us immediately before the order is shipped out.



5. Order Status

If you provided your email address during checkout, you’ll receive a shipping confirmation email once your order ships. This email will include your shipment’s tracking number, allowing you to track your order on the shipping carrier’s website directly. Or track from this Track Your Order page.



6. Taxes and other charges

Our website does not charge any taxes or other charges. The product price and the shipping cost you see are the total order amount you ultimately pay.

Please note that most packages are shipped from China. Our website does not charge taxes, but the destination country may have product import taxes. This requires the buyer to pay the tax to the local customs.



7. Shipping Method

We use YunExpress. After being shipped to the destination country, it will be handed over to the local logistics provider for delivery.

Most purchases shipped from our warehouses will arrive within 10-15 business days. If there is a delay, we will notify you by mail or email.

Some items sent by other expresses may take longer, and items ordered together may not arrive in the same box.

If you have any questions, please contact us by Live Chat or Contact Us page.

Customer Reviews

Based on 5 reviews
60%
(3)
0%
(0)
40%
(2)
0%
(0)
0%
(0)
K
Kevin McRae
So close to excellent.

The only reason I didn't give these axles a five star review is the fact that C hub should be outside of (encapsulate) the steering knuckle, not sit within it. This design element is a major detractor when it come to hard lining because it allows the rocks to come in direct contact with the steering knuckle. With the designs that use the external C hub design, the rocks can only come in contact with the C hub/ axle housing, allowing the steering knuckle freedom of movement even if the vehicle is hanging from a rock ledge by one front tire. I don't usually write reviews but I feel strongly that by addressing this short coming you will have a five star product. When you correct this issue I will buy more of these, not until.

g
guy spencer
Awsome

Some of the best axles I’ve ever used the turning is absolutely fantastic highly recommend

G
Gavin

Quick postage well packed.

E
Erik
A major bummer

I love meus products for my micros so I thought I’d give a shot for my 1/10 Capra. I got the 2 front axles. And after setting them up and just steering on the work stand end up snapping a isokinetic cvd axle. I was so excited to try these out. I’m still very interested in these axles but I can’t even purchase new cvd axles for these anywhere. Please help MEUS!!

Due to problems with the CVD of the first batch of goods, we have removed the CVD previously installed in the front axle and replaced it with a new batch of CVD. We will resend two sets of front axle CVD to you for replacement.

J
Jesus

So far I love how they look love how low they are and the side servo is the best
